Lifting Eye Bolt (DIN580)

Material :
Steel , Stainless Steel 304 (A2)

Finishing :
Steel comes in Plain Finishing

Note:
Drop us an email if you have other coating or size requirement

Read More:
Catalog Lifting Eye Bolt (DIN580)

Catalog Lifting Eye Bolt (Inches)

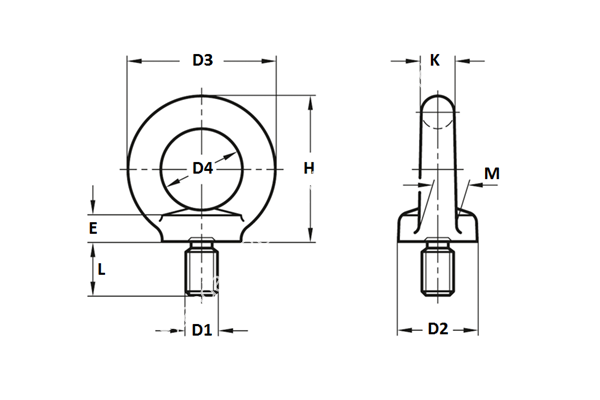

Size (D1) M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56 M64
Pitch 1.0 1.25 1.5 1.75 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.5 3.5 4.0 4.5 4.5 5.5 6.0
D2 20MM 20MM 25MM 30MM 30MM 35MM 40MM 40MM 40MM 50MM 50MM 65MM 65MM 75MM 85MM 85MM 110MM 120MM
D3 36MM 36MM 45MM 54MM 54MM 63MM 72MM 72MM 72MM 90MM 90MM 108MM 108MM 126MM 144MM 144MM 184MM 206MM
D4 20MM 20MM 25MM 30MM 30MM 35MM 40MM 40MM 40MM 50MM 50MM 60MM 60MM 70MM 80MM 80MM 100MM 110MM
H 36MM 36MM 45MM 53MM 53MM 62MM 71MM 71MM 71MM 90MM 90MM 109MM 109MM 128MM 147MM 147MM 187MM 208MM
Thread Length (L)
  • 14MM
  • 50MM
  • 15MM
  • 50MM
  • 18MM
  • 50MM
  • 22MM
  • 50MM
  • 27MM
  • 50MM
  • 27MM
  • 50MM
  • 30MM
  • 50MM
  • 30MM
  • 50MM
  • 35MM
  • 50MM
  • 38MM
  • 50MM
45MM 45MM 55MM 55MM 65MM 70MM 78MM 90MM

Size (D1) 1/4 5/16 3/8 1/2 5/8 3/4 7/8 1" 1-1/8 1-1/4 1-1/2 1-3/4 2" 2-1/2
T.P.I 20 G 20 G 16 G 12 G 11 G 10 G 9 G 8 G 7 G 7 G 6 G 5 G 4.5 G 4 G
D2 20MM 20MM 25MM 30MM 35MM 40MM 40MM 50MM 65MM 75MM 85MM 100MM 100MM 120MM
D3 36MM 36MM 45MM 54MM 63MM 72MM 72MM 90MM 108MM 126MM 144MM 166MM 166MM 206MM
D4 20MM 20MM 25MM 30MM 35MM 40MM 40MM 50MM 60MM 70MM 80MM 90MM 90MM 110MM
H 36MM 36MM 45MM 53MM 62MM 71MM 71MM 90MM 109MM 128MM 147MM 168MM 168MM 208MM
Thread Length (L)
  • 14MM
  • 50MM
  • 15MM
  • 50MM
  • 18MM
  • 50MM
  • 22MM
  • 55MM
  • 27MM
  • 50MM
  • 30MM
  • 50MM
  • 30MM
  • 50MM
  • 38MM
  • 50MM
45MM 45MM 55MM 65MM 70MM 90MM
