All-Metal Lock Nut
Material:
Steel
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other size or coating requirement
Read More:
Catalog All Metal Lock Nut

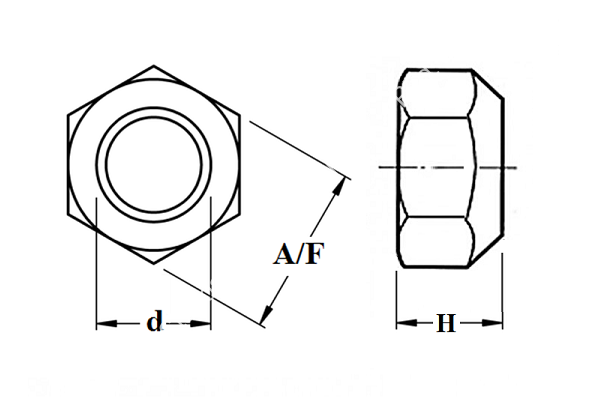

| Size (D) | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
| Pitch | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 |
| A/F | 7MM | 8MM | 10MM | 13MM | 17MM | 19MM | 22MM | 24MM | 27MM | 30MM | 32MM | 36MM |
| Height (H) | 4.2MM | 5.1MM | 6MM | 8MM | 10MM | 12MM | 14MM | 16MM | 14MM | 15.4MM | 16.9MM | 18.5MM |
