Allen Key Torx Pin
Material:
Steel
Size:
T8 , T9 , T10 , T15 , T20 , T25 , T27 , T30 , T40 , T45 …
Note:
Drop us an email if you have other Size requirement
Read More:
Catalog Allen Key Torx Pin

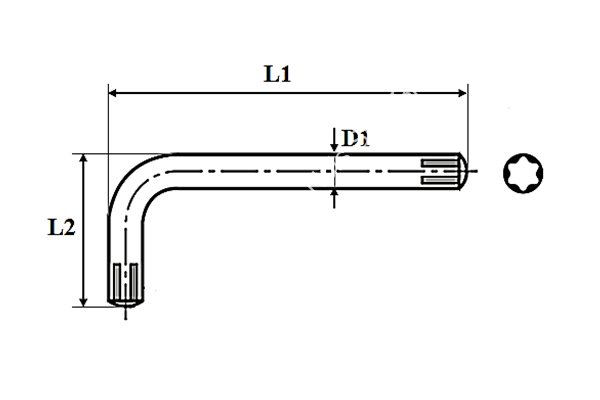

| Size | D1 | L1 | L2 | For Button Torx Pin Screw | For Pan Head Torx Screw | For Flat Head Torx Screw |
| T8 | 2.5MM | 81MM | 17MM | |||
| T10 | 3.1MM | 55MM | 22MM | M3 | M3 | M10 |
| T15 | 3.5MM | 72MM | 22MM | M4 | ||
| T20 | 4.0MM | 77MM | 24MM | M4 | M4 | |
| T25 | 4.5MM | 80MM | 26MM | M5 | M5 | M5 |
| T27 | 5.0MM | 84MM | 28MM | M6 | ||
| T30 | 6.0MM | 86MM | 34MM | M6 | M6 | |
| T40 | 6.8MM | 97MM | 33MM | M8 | M8 | M8 |
| T45 | 8.0MM | 105MM | 39MM | M10 |
