Ball Plunger (Slotted Type)
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Black Oxide Finishing
Read More:
Catalog Ball Plunger (Slotted Type)

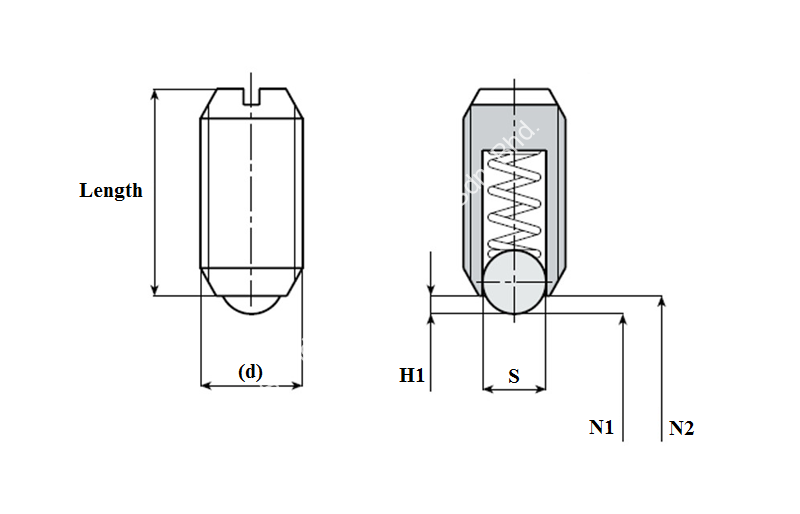

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| Pitch | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 |
| Length | 7MM | 9MM | 12MM | 13MM | 15MM | 19MM | 20MM | 25MM | 30MM |
| S | 1.5MM | 2.5MM | 3.0MM | 3.5MM | 5.0MM | 6.0MM | 8.0MM | 10.0MM | 12.0MM |
| H1 | 0.5MM | 0.8MM | 0.9MM | 1.0MM | 1.5MM | 2.0MM | 2.5MM | 3.5MM | 4.5MM |
| N1 (Newton) | 1.5MM | 4MM | 6MM | 9MM | 15MM | 20MM | 30MM | 65MM | 80MM |
| N2 (Newton) | 3MM | 10MM | 11MM | 13MM | 30MM | 35MM | 55MM | 125MM | 160MM |
| Normal thrust (thrust values in position N1 & N2) | |||||||||
