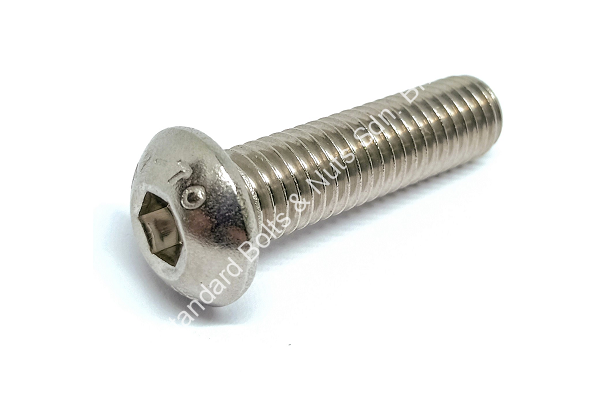

Button Head Cap Screw (ISO 7380)
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :
Steel comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Button Head Cap Screw (ISO 7380)
| Diameter Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| Pitch | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 |
| A/F | 1.27MM | 1.5MM | 2MM | 2.5MM | 3MM | 4MM | 5MM | 6MM | 8MM | 10MM |
| Head Diameter | 3.5MM | 4.5MM | 5.5MM | 7.5MM | 9.5MM | 10.5MM | 14MM | 18MM | 21MM | 27.5MM |
| Head Height | 1.3MM | 1.5MM | 1.65MM | 2.2MM | 2.75MM | 3.3MM | 4.4MM | 5.5MM | 6.6MM | 8.8MM |
| Length | 4MM - 10MM | 4MM - 12MM | 4MM - 35MM | 5MM - 50MM | 6MM - 50MM | 8MM - 65MM | 10MM - 80MM | 12MM - 100MM | 16MM - 100MM | 30MM - 100MM |
