Chemical Anchor Stud (Dog Point)
Material :
High Tensile Grade 8.8 , Stainless Steel 304 (A2)
Finishing :
Steel come in Yellow Zinc and Zinc Plated and Hot Dip Galvanized (HDG)
Note:
Drop us a note if you have other coating or size requirement
Read More:
Catalog Chemical Anchor Stud (Dog Point)

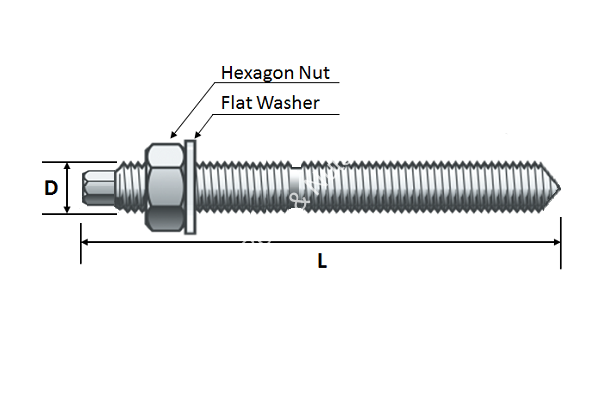

| Diameter Size (D) | Length (L) | Fixture Hole Diameter | Max. Fixture Thickness |
| M8 | 110MM | 9MM | 15MM |
| M10 | 130MM | 12MM | 20MM |
| M12 | 160MM | 14MM | 30MM |
| M16 | 190MM | 18MM | 40MM |
| M20 | 260MM | 22MM | 50MM |
| M24 | 300MM | 28MM | 55MM |
| M30 | 380MM | 33MM | 70MM |
