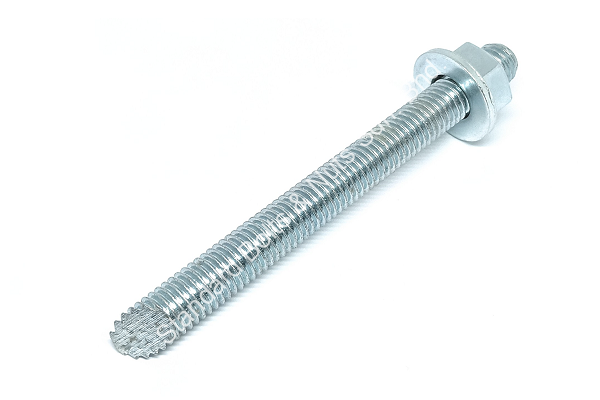

Chemical Anchor Stud

Material :
High Tensile Steel Grade 8.8 , Stainless Steel 304 (A2)

Finishing :
Steel come in Yellow Zinc and Zinc Plated and Hot Dip Galvanized (HDG)

Note:
Drop us a note if you have other coating or size requirement

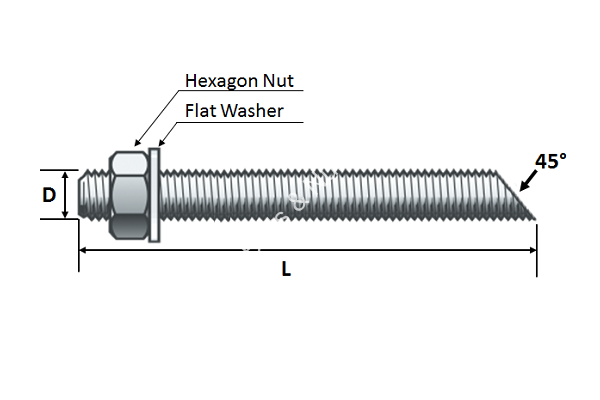

Diameter Size (D) Length (L) Fixture Hole Diameter Max. Fixture Thickness
M8 110MM 9MM 15MM
M10 130MM 12MM 20MM
M12 160MM 14MM 30MM
M16 190MM 18MM 40MM
M20 260MM 22MM 50MM
M24 300MM 28MM 55MM
M30 380MM 33MM 70MM
