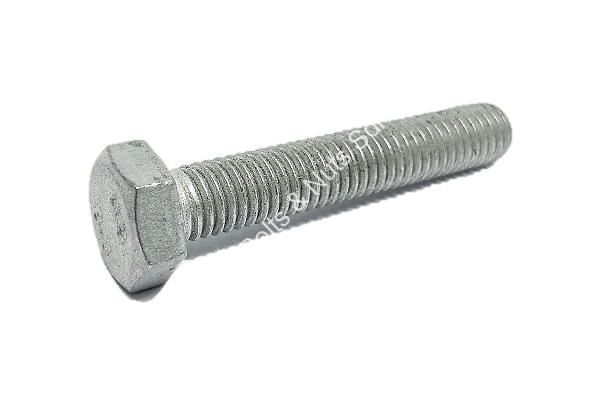

DIN933 Hexagon Bolt Full Thread (UNC)

Material:
Grade 5, Stainless Steel 304 (A2) and Stainless Steel 316 (A4)

Finishing:
Grade 5 comes in Black Oxide and Zinc Plated finishing

Note:
Drop us an email if you have other coating or size requirement

Read More:
Catalog DIN933 Hexagon Bolts (UNC)

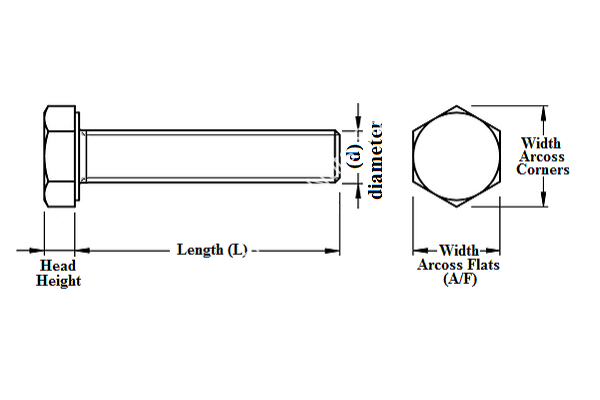

Specifications (ISO 898-1)



Diameter 1/4 5/16 3/8 7/16 1/2 UNC 1/2 BSW 9/16 5/8 3/4 7/8 1" 1-1/8 1-1/4 1-3/8 1-1/2
UNC 20 G 18 G 16 G 14 G 13 G 12 G 12 G 11 G 10 G 9 G 8 G 7 G 7 G 6 G 6 G
A/F 7/16 1/2 9/16 5/8 3/4 13/16 13/16 15/16 1-1/8 1-5/16 1-1/2 1-11/16 1-7/8 2-1/16 2-1/4
Length
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/4
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/4
  • 2-1/2
  • 2-3/4
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/4
  • 2-1/2
  • 2-3/4
  • 3"
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/4
  • 2-1/2
  • 2-3/4
  • 3"
  • 2"
  • 2-1/4
  • 2-1/2
  • 2-3/4
  • 3"
  • 2-1/2
  • 2-3/4
  • 3"
  • 3-1/2
  • 3"
  • 3-1/2
