DIN961 Hexagon Bolt Full Thread (Fine Thread)

CL 8.8

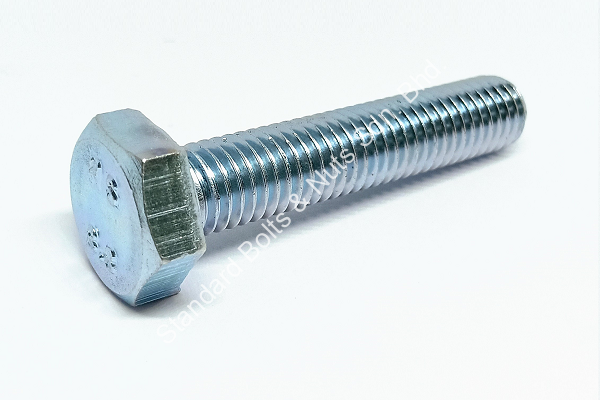

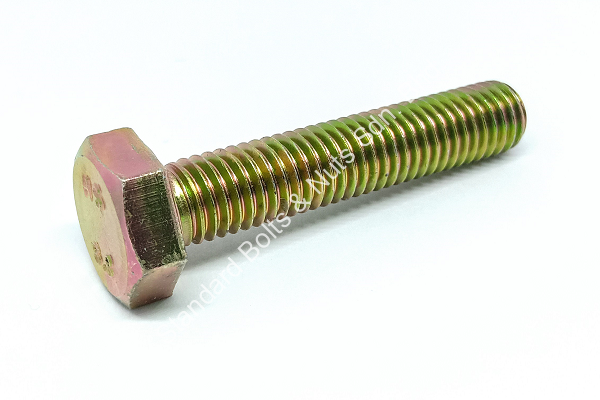

CL 8.8 comes in Black Oxide and Zinc Plated finishing

Drop us an email if you have other coating requirement

Read More:
Catalog DIN961 Hexagon Bolt (Fine Thread)

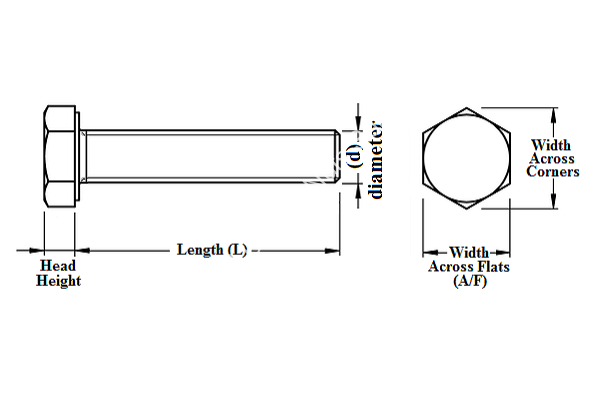

Specifications (ISO 898-1)


Size M8 M10 M10 M10 M12 M12
Pitch 1.0 1.0 1.25 1.25 1.25 1.5
Width Across Flats (A/F) 13MM 17MM 14MM 17MM 19MM 19MM
Width Across Corners (max.) 14.38MM 18.9MM 15.6MM 18.9MM 21.1MM 21.1MM
Head Height 5.3MM 6.4MM 6.4MM 6.4MM 7.5MM 7.5MM
Length 16MM - 30MM 20MM - 35MM 16MM - 35MM 20MM - 35MM 20MM - 40MM 20MM - 40MM
Size M14 M16 M18 M20 M22 M24
Pitch 1.5 1.5 1.5 1.5 1.5 1.5
Width Across Flats (A/F) 22MM 24MM 27MM 30MM 32MM 36MM
Width Across Corners (max.) 24.49MM 26.75MM 30.14MM 33.53MM 35.72MM 39.98MM
 Head Height 8.8MM 10MM 11.5MM 12.5MM 14MM 15MM
Length 25MM - 45MM 25MM - 50MM 25MM - 55MM 30MM - 60MM 40MM - 65MM 40MM - 70MM
