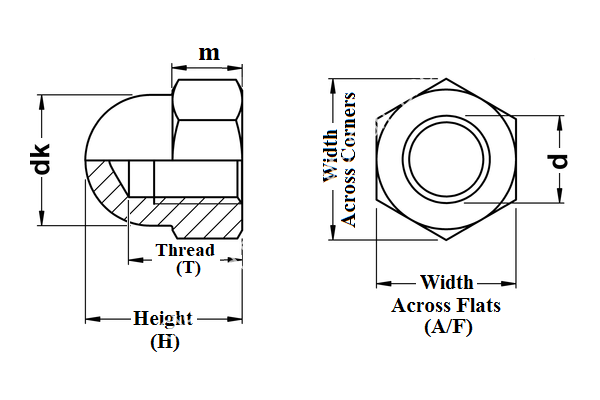

Dome Cap Nut

Material:
Stainless Steel 304 (A2) , Stainless Steel 316 (A4)



Metric Size M4 M5 M6 M8 M10
Pitch 0.7 0.8 1.0 1.25 1.5
Width Across Flats (A/F) 7MM 8MM 10MM 13MM 17MM
Width Across Corners 7.66MM 8.79MM 11.05MM 14.38MM 18.9MM
Height (H) 8MM 10MM 12MM 15MM 18MM

Metric Size M12 M14 M16 M18 M20
Pitch 1.75 2.0 2.0 2.5 2.5
Width Across Flats (A/F) 19MM 22MM 24MM 27MM 30MM
Width Across Corners 21.1MM 24.49MM 26.75MM 30.14MM 33.53MM
Height (H) 22MM 25MM 28MM 32MM 34MM
