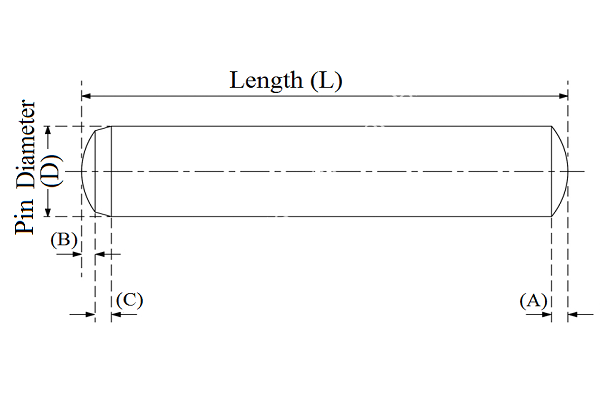

| Diameter (D) | M1 | M1.5 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| (A) | 0.15MM | 0.23MM | 0.3MM | 0.4MM | 0.45MM | 0.6MM | 0.75MM | 0.9MM | 1.2MM | 1.5MM | 1.8MM | 2.5MM | 3MM |
| (C) | 0.4MM | 0.5MM | 0.6MM | 0.7MM | 0.8MM | 1.0MM | 1.2MM | 1.5MM | 1.8MM | 2.0MM | 2.5MM | 3.0MM | 4.0MM |
| (B) | 0.08MM | 0.12MM | 0.18MM | 0.25MM | 0.3MM | 0.4MM | 0.5MM | 0.6MM | 0.8MM | 1.0MM | 1.3MM | 1.7MM | 2.0MM |
| Length (L) | 4MM- 12MM | 4MM - 20MM | 4MM - 25MM | 5MM - 25MM | 4MM - 60MM | 6MM - 70MM | 6MM - 80MM | 8MM - 90MM | 10MM - 150MM | 16MM - 150MM | 20MM - 150MM | 40MM - 150MM | 50MM - 150MM |
