Expanding HS Rivet
Material:
Steel , Stainless Steel
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other Size requirement
Read More:

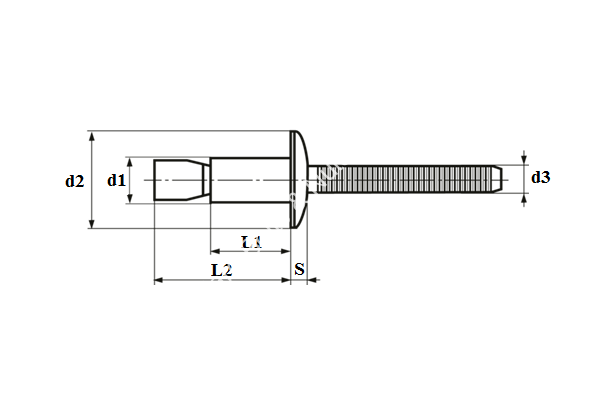

Catalog Expanding HS Rivet
| Diameter Size (d1) | 4.8MM | 4.8MM | 6.4MM | 6.4MM |
| d2 (max) | 10.1MM | 10.1MM | 13.4MM | 13.4MM |
| d3 (max) | 3.0MM | 3.0MM | 4.0MM | 4.0MM |
| S (max) | 2.1MM | 2.1MM | 2.9MM | 2.9MM |
| Length (L1) | 10.5MM | 13.7MM | 14.1MM | 19.2MM |
| Borehole Diameter | 4.9MM ~ 5.1MM | 4.9MM ~ 5.1MM | 6.6MM ~ 7.0MM | 6.6MM ~ 7.0MM |
| Grip Range | 1.57MM ~ 6.86MM | 1.57MM ~ 11.1MM | 2.03MM ~ 9.53MM | 2.03MM ~ 15.88MM |
