External Tooth Lock Washer

Material :
Steel & Stainless Steel 304 (A2)

Finishing :
Steel comes in ZincPlated Finishing

Note:
Drop us an email if you have other coating requirement

Read More:
Catalog External Tooth Lock Washer

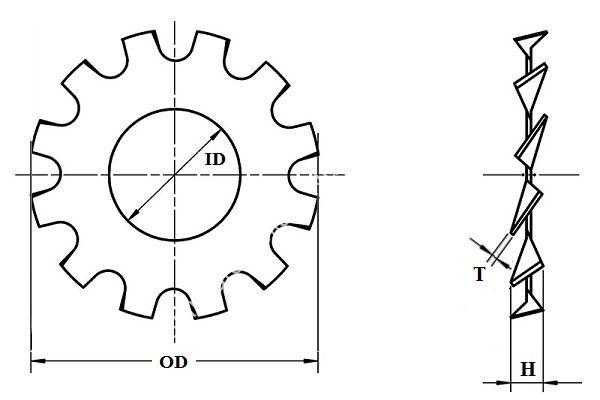

Size M2 M2.5 M3 M3.5 M4 M5 M6 M8
Diameter (ID) 2.2MM 2.7MM 3.2MM 3.2MM 4.3MM 5.3MM 6.4MM 8.4MM
Diameter (OD) 4.5MM 5.5MM 6MM 6MM 8MM 10MM 11MM 15MM
Thickness (T) 0.3MM 0.4MM 0.4MM 0.5MM 0.5MM 0.6MM 0.7MM 0.8MM

Size M10 M12 M14 M16 M18 M20 M22 M24
Diameter (ID) 10.5MM 13MM 15MM 17MM 19MM 21MM 23MM 25MM
Diameter (OD) 18MM 20.5MM 24MM 26MM 30MM 33MM 36MM 38MM
Thickness (T) 0.9MM 1.0MM 1.0MM 1.2MM 1.4MM 1.4MM 1.5MM 1.5MM
