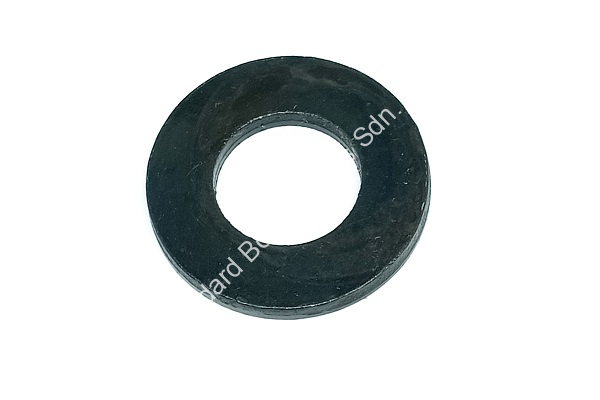

Flat Washer (DIN9021)
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :
Steel comes in Plain and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Flat Washer (DIN9021)
| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M24 |
| Diameter (ID) | 3.2MM | 4.3MM | 5.3MM | 6.4MM | 8.4MM | 10.5MM | 13MM | 15MM | 17MM | 19MM | 21MM | 26MM |
| Diameter (OD) | 9MM | 12MM | 15MM | 18MM | 24MM | 30MM | 37MM | 44MM | 50MM | 56MM | 60MM | 72MM |
| Thickness (T) | 0.8MM | 1.0MM | 1.2MM | 1.6MM | 2.0MM | 2.5MM | 3.0MM | 3.0MM | 3.0MM | 4.0MM | 4.0MM | 5.0MM |
