Grease Nipple 45 Degree Type
Material :
Steel
Finishing :
Steel comes in Nickel Plated Finishing
Read More:
Catalog Grease Nipple 45 Degree Type

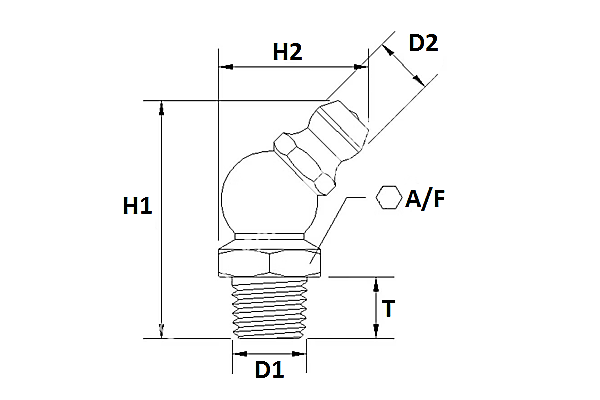

| Thread Size (D1) | M6 | M8 | M10 | |||
| Thread Pitch | 1.0 | 1.0 | 1.0 | |||
| Head Dia (D2) | 6.5MM | 6.5MM | 6.5MM | |||
| A/F | 8MM | 10MM | 11MM | |||
| H1 | 17MM | 19MM | 20MM | |||
| H2 | 15MM | 15MM | 16MM | |||
| Thread (T) | 6MM | 7MM | 8MM |
| Thread Size (D1) | 1/8 | 1/4 | 1/4 | 5/16 | 3/8 | 1/2 |
| Thread | BSP | BSP | UNF | UNF | UNF | UNF |
| Head Dia (D2) | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM |
| A/F | 10MM | 14MM | 8MM | 10MM | 10MM | 14MM |
| H1 | 20MM | 23.5MM | 17MM | 19MM | 20MM | 23MM |
| H2 | 15MM | 17MM | 14MM | 15MM | 15MM | 18MM |
| Thread (T) | 8MM | 9MM | 6MM | 7MM | 8MM | 9MM |
