Grease Nipple Straight Type
Material :
Steel
Finishing :
Steel comes in Nickel Plated Finishing
Read More:
Catalog Grease Nipple Straight Type

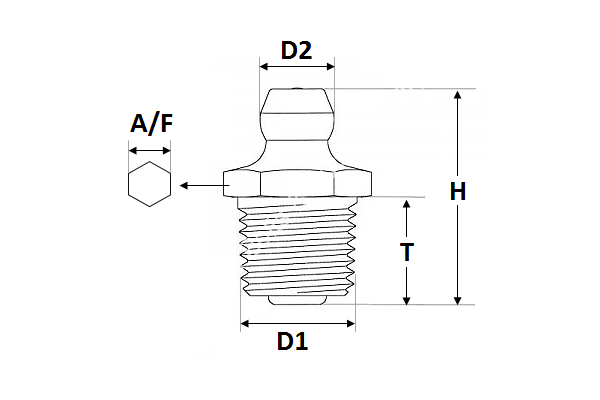

| Thread Size (D1) | M6 | M6 | M8 | M8 | M10 | M10 | M12 |
| Thread Pitch | 0.75 | 1.0 | 1.0 | 1.25 | 1.0 | 1.5 | 1.5 |
| A/F | 7MM | 8MM | 10MM | 9MM | 11MM | 11MM | 14MM |
| Head Dia. (D2) | 6MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM |
| Height (H) | 14MM | 15MM | 17MM | 18MM | 20MM | 21MM | 21MM |
| Thread (T) | 5MM | 6MM | 6MM | 8MM | 8MM | 10MM | 9.5MM |
| Thread Size (D1) | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | 5/16 | 3/8 | 3/8 | 3/8 | 1/2 |
| Thread | BSP | NPT | BSP | UNF | NPT | UNF | BSP | UNF | NPT | UNF |
| A/F | 10MM | 11MM | 14MM | 8MM | 14MM | 10MM | 17MM | 10MM | 17MM | 14MM |
| Head Dia. (D2) | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM | 6.5MM |
| Height (H) | 20MM | 18MM | 25MM | 15MM | 20MM | 18MM | 23MM | 20MM | 25MM | 20MM |
| Thread (T) | 9MM | 7MM | 11MM | 6MM | 9MM | 8MM | 10MM | 9MM | 9MM | 9.5MM |
