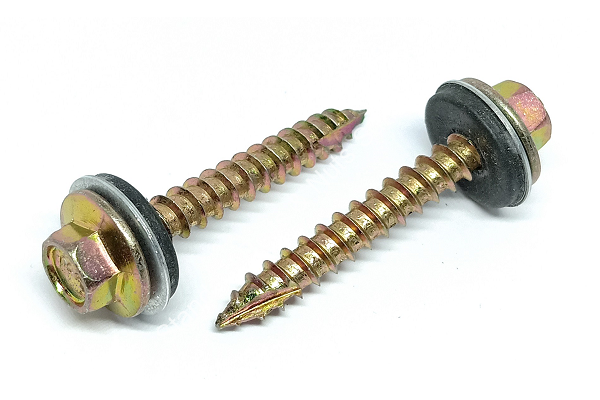

Hexagon Head Type 17 Self Drilling Screw HW

Material:
Steel

Finishing:
Steel comes in Yellow Zinc finishing

Note:
Drop us an email if you have other coating or size requirement

Read More:
Catalog Hexagon Head Type 17 Self Drilling Screw HW

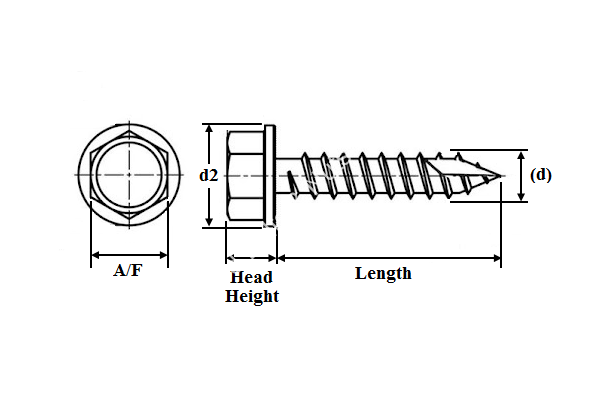

Diameter Size (d) #10 (M4.8) #12 (M5.5)
A/F 8MM 8MM
Flange Diameter (d2) (max) 10.5MM 14.2MM
Head Height (max) 4.6MM 5.6MM
Length
  • 3/4
  • 1"
  • 1"
  • 1-1/2
  • 1-3/4
  • 2"
  • 1-1/2
  • 3"
  • 3-1/2
  • 4"
  • 5"
