Nail In Anchor

A nail-in anchor, also known as a drive anchor, is a type of fastener designed for easy installation into masonry or concrete. It typically consists of a metal sleeve with a nail or pin that is driven into the anchor using a hammer. As the nail is driven in, it expands the sleeve, securing it firmly in place within the base material. Nail-in anchors are favored for their quick and straightforward installation process, making them ideal for light to medium-duty applications such as hanging shelves, attaching fixtures, or mounting lightweight objects. They provide reliable holding power and are commonly used in both residential and commercial construction.

Material :
Steel

Read More:
Catalog Nail In Anchor

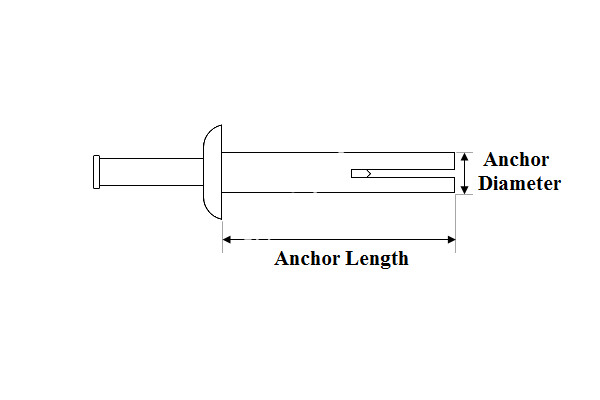

Anchor Diameter Anchor Length Fixture Hole Diameter Max Fixture Thickness
M6 30MM 6.5MM 10MM
M6 40MM 6.5MM 20MM
M6 50MM 6.5MM 30MM
