Nylon Lock Nut (UNC)
Material:
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Nylon Lock Nut (UNC)

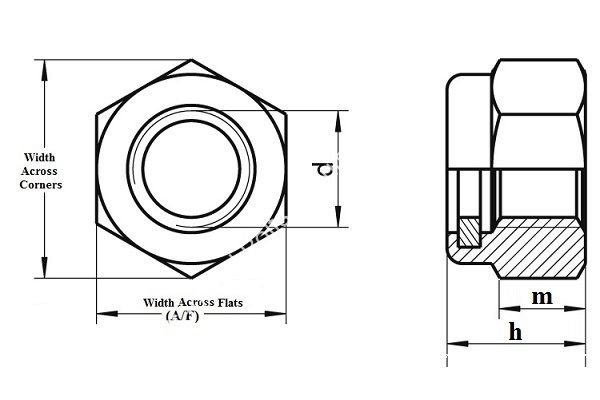

| Size | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 1/2 BSW | 9/16 | 5/8 |
| UNC | 24 G | 20 G | 18 G | 16 G | 14 G | 13 G | 12 G | 12 G | 11 G |
| A/F (Max) | 10.2MM | 11.2MM | 12.8MM | 14.4MM | 16.0MM | 19.1MM | 19.1MM | 22.3MM | 24.0MM |
| h (Max) | 7.1MM | 8.4MM | 9.2MM | 11.9MM | 11.9MM | 15.5MM | 15.5MM | 16.7MM | 19.5MM |
| Size | 3/4 | 7/8 | 1" | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-3/4 | 2" |
| UNC | 10 G | 9 G | 8 G | 7 G | 7 G | 6 G | 6 G | 5 G | 4.5 G |
| A/F (Max) | 27.1MM | 32.0MM | 36.6MM | 43.0MM | 47.7MM | 50.8MM | 57.2MM | 69.9MM | 79.4MM |
| h (Max) | 22.6MM | 25.4MM | 27.4MM | 30.6MM | 36.1MM | 40.1MM | 41.7MM | 58.7MM | 62.0MM |
