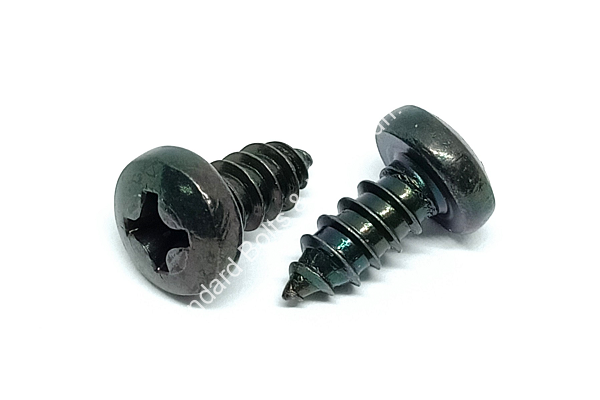

Pan Head Self Tapping Screw Type AB

Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)

Finishing :
Steel comes in Nickel Plated Finishing

Note:
Drop us an email if you have other coating requirement

Read More:
Catalog Pan Head Self Tapping Screw Type AB

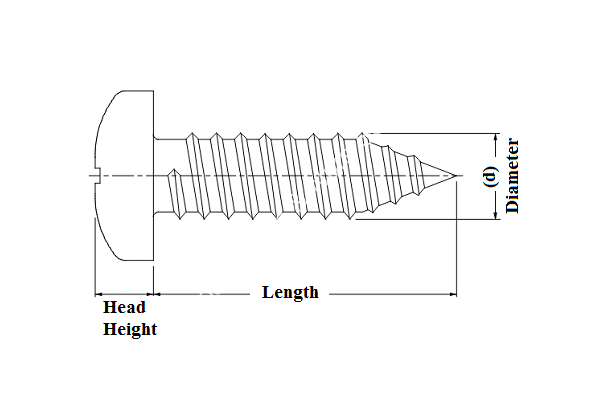

Size (d) #4 (M2.9) #6 (M3.5) #8 (M4.2) #10 (M4.8) #12 (M5.5) #14 (M6.3)
Head Diameter (max) 5.6MM 6.9MM 8.2MM 9.5MM 10.8MM 12.5MM
Head Height (max) 2.2MM 2.6MM 3.1MM 3.55MM 3.95MM 4.55MM
Length
  • 1/4
  • 3/8
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1/4
  • 3/8
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 3"
  • 3-1/2
  • 4"
  • 3/8
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 3"
  • 3-1/2
  • 4"
  • 3/8
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 3"
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 3"
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2-1/2
  • 3"
