Socket Head Cap Screw (DIN912)
Material :

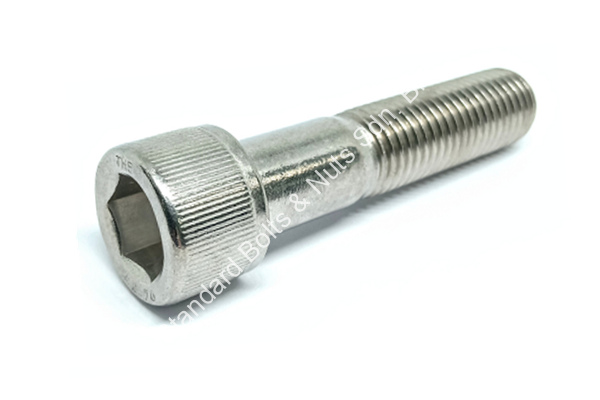

Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :

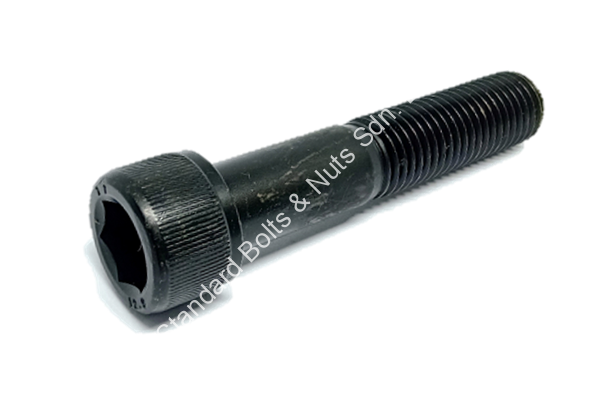

Steel comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Socket Head Cap Screw (DIN912) )
| Diameter Size | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 |
| Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 |
| A/F | 1.5MM | 1.5MM | 2MM | 2.5MM | 3MM | 4MM | 5MM | 6MM | 8MM | 10MM | 12MM |
| Head Diameter | 3MM | 3.8MM | 4.5MM | 5.5MM | 7MM | 8.5MM | 10MM | 13MM | 16MM | 18MM | 21MM |
| Head Height | 1.6MM | 2MM | 2.5MM | 3MM | 4MM | 5MM | 6MM | 8MM | 10MM | 12MM | 14MM |
| Thread Length | 15MM | 16MM | 17MM | 18MM | 20MM | 22MM | 24MM | 28MM | 32MM | 36MM | 40MM |
| Diameter Size | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M42 | M48 |
| Pitch | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.5 | 5.0 |
| A/F | 14MM | 14MM | 17MM | 17MM | 19MM | 19MM | 22MM | 24MM | 27MM | 32MM | 36MM |
| Head Diameter | 24MM | 27MM | 30MM | 33MM | 36MM | 40MM | 45MM | 50MM | 54MM | 63MM | 72MM |
| Head Height | 16MM | 18MM | 20MM | 22MM | 24MM | 27MM | 30MM | 33MM | 36MM | 42MM | 48MM |
| Thread Length | 44MM | 48MM | 52MM | 56MM | 60MM | 66MM | 72MM | 78MM | 84MM | 96MM | 108MM |
