Square Thin Nut (DIN562)
Material:
Steel , Stainless Steel 304 (A2)
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Square Thin Nut (DIN562)

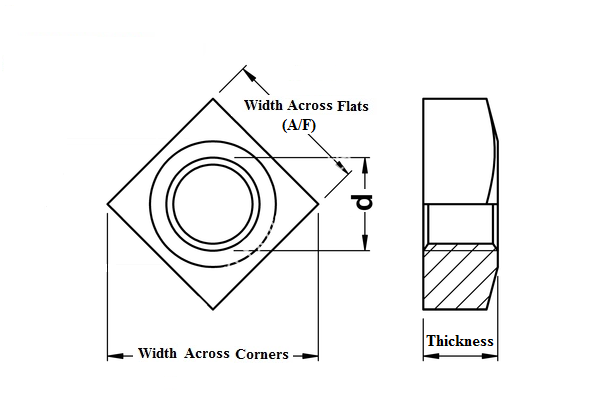

| Square Thin Nut (DIN562) | ||||||
| Size | M3 | M4 | M5 | M6 | M8 | M10 |
| Pitch | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 |
| Width Across Flats (A/F) | 5.5MM | 7MM | 8MM | 10MM | 13MM | 17MM |
| Width Across Corners | 7MM | 8.9MM | 10.2MM | 12.7MM | 16.5MM | 21.5MM |
| Thickness | 1.8MM | 2.2MM | 2.7MM | 3.2MM | 4.0MM | 5.0MM |
