Stand Off
Material:
Steel & Brass
Finishing:
Steel comes in Zinc Plated finishing
Read More:
Catalog Stand Off

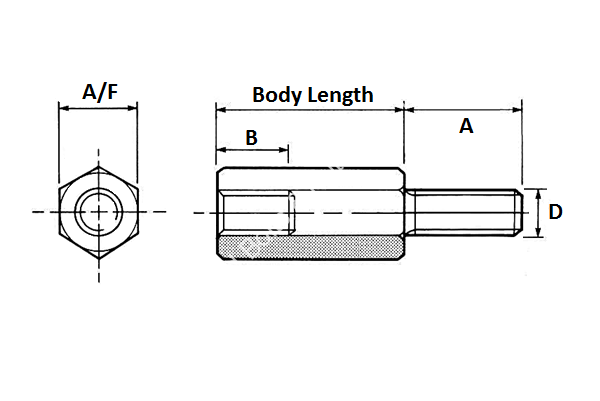

| Thread Size (D) | Thread Pitch | A/F | Body Length | Thread Length (A) | Thread Length (B) |
| M3 | 0.5 | 5.5MM | 5MM ~ 60MM | 5MM | 2.5MM ~ 6MM |
| M4 | 0.7 | 7MM | 5MM ~ 60MM | 6MM | 2.5MM ~ 7MM |
| M5 | 0.8 | 8MM | 8MM ~ 80MM | 8MM | 3MM ~ 9MM |
| M6 | 1.0 | 10MM | 8MM ~ 100MM | 10MM | 3MM ~ 11MM |
