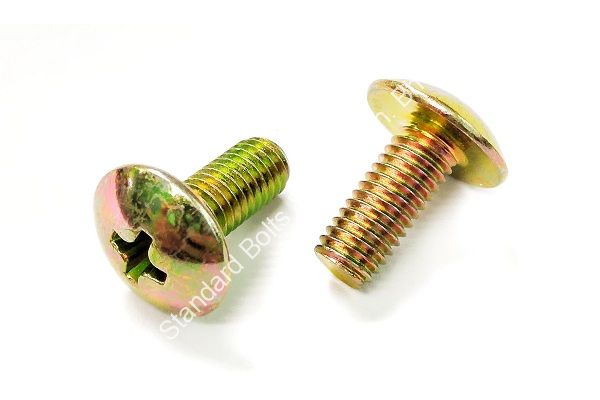

Truss Head Machine screw
Material:
Steel, Stainless Steel 304 (A2), Stainless Steel 316 (A4)
Finishing:

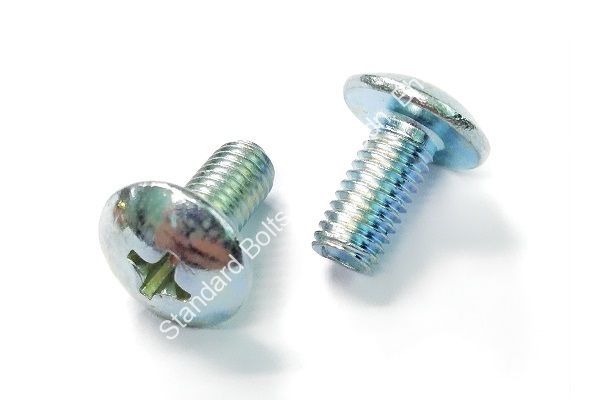

Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other coating or size requirement
Read More:
Catalog Truss Head Machine Screw

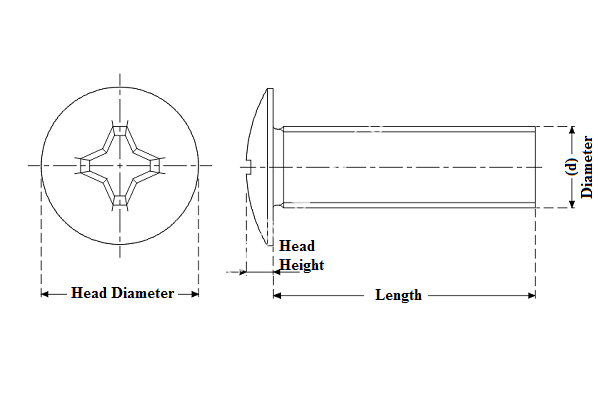

| Diameter Size | M3 | M4 | M5 | M6 | M8 |
| Head Diameter | 6.9MM | 9.4MM | 11.8MM | 14MM | 17.8MM |
| Head Height | 1.9MM | 2.5MM | 3.1MM | 3.7MM | 4.8MM |
| Length | 5MM - 40MM | 6MM - 50MM | 8MM - 50MM | 10MM - 60MM | 12MM - 70MM |
