Wafer Head Self Drilling Screw

Material:

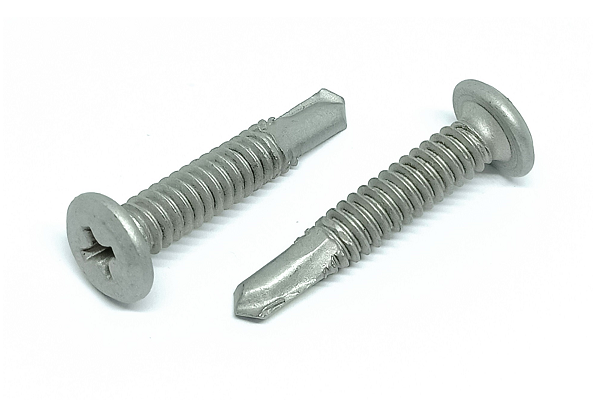

Steel , Stainless Steel 410

Finishing:

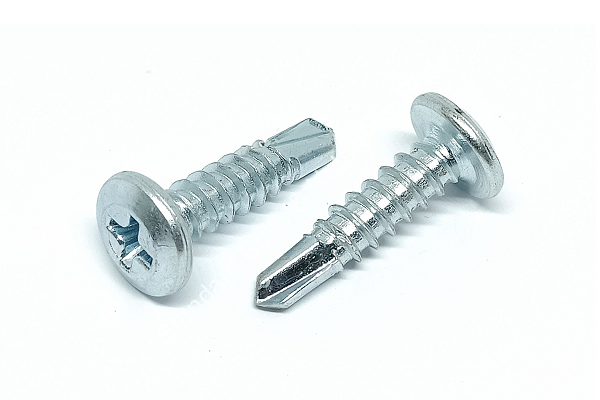

Steel comes in Yellow Zinc and Zinc Plated finishing

Note:
Drop us an email if you have other coating or size requirement

Read More:
Catalog Wafer Head Self Drilling Screw

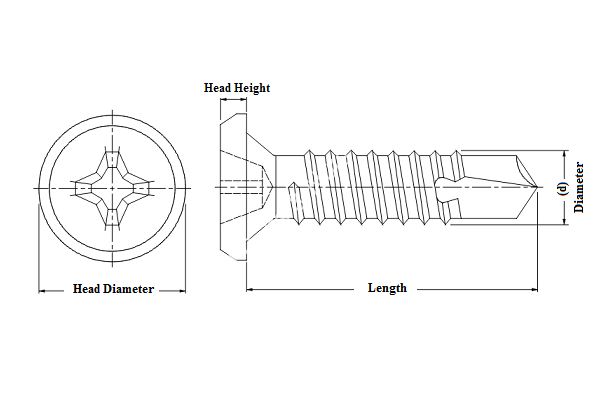

Diameter Size (d) #6 (M3.5) #8 (M4.2) #10 (M4.8)
Head Diameter (max) 7.4MM 7.9MM 9.5MM
Head Height (max) 1.8MM 2.2MM 2.5MM
Length
  • 3/8
  • 1/2
  • 1/2
  • 5/8
  • 3/4
  • 1/2
  • 5/8
  • 3/4
  • 7/8
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
