Socket Countersunk Cap Screw (UNC)
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :

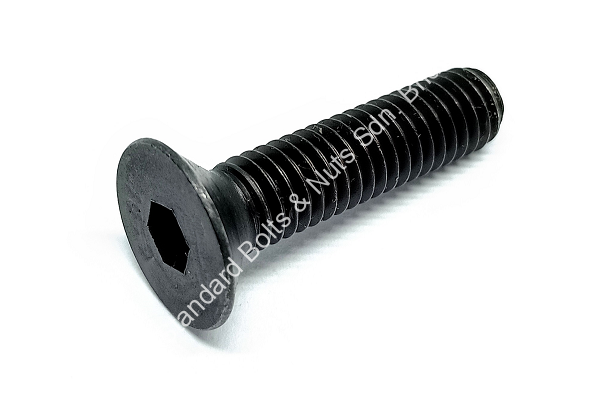

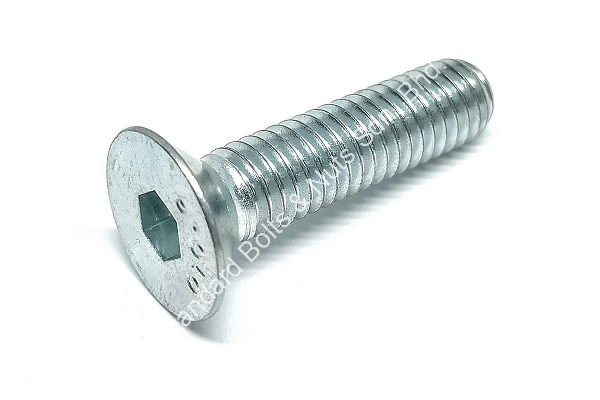

Steel comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:

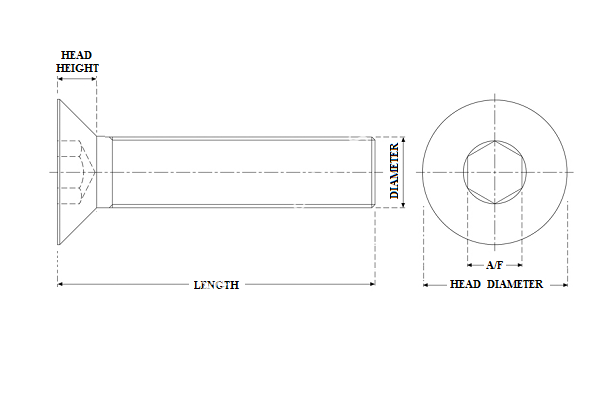

Catalog Socket Countersunk Cap Screw (UNC)
| Diameter Size | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 UNC | 1/2 BSW | 5/8 | 3/4 | 7/8 | 1" |
| T.P.I | 24G | 20G | 18G | 16G | 13G | 12G | 11G | 10G | 9G | 8G |
| A/F | 1/8 | 5/32 | 3/16 | 7/32 | 5/16 | 5/16 | 3/8 | 1/2 | 9/16 | 5/8 |
| Length | 3/8 - 2" | 3/8 - 3" | 1/2 - 3" | 3/4 - 3" | 1" - 4" | 1" - 4" | 1-1/4 - 4" | 1-1/2 - 6" | 2" - 4" | 2" - 5" |
| Diameter Size | #2-56 | #4-40 | #6-32 | #8-32 | #10-24 | |||||
| A/F | 1.27MM | 1.5MM | 5/16 | 3/32 | 1/8 | |||||
| Length | 3/16 - 1/2 | 3/16 - 1" | 1/4 - 1" | 1/4 - 1" | 5/16 - 1-1/2 |
