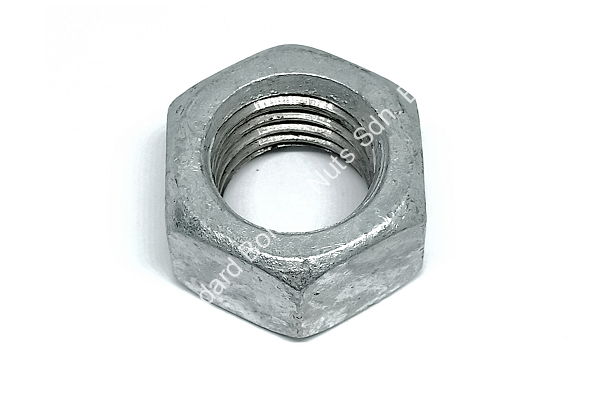

Hexagon Nut (DIN934)
Material:
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing:
Steel comes in Black Oxide and Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Hexagon Nut (DIN934)
| Size | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 |
| Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.0 | 1.25 | 1.5 | 1.75 |
| A/F | 4MM | 5MM | 5.5MM | 6MM | 7MM | 8MM | 10MM | 11MM | 13MM | 17MM | 19MM |
| Height | 1.6MM | 2.0MM | 2.4MM | 2.8MM | 3.2MM | 4.0MM | 5.0MM | 5.8MM | 6.5MM | 8.0MM | 10MM |
| Size | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| Pitch | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 |
| A/F | 22MM | 24MM | 27MM | 30MM | 32MM | 36MM | 41MM | 46MM | 50MM | 55MM | 60MM |
| Height | 11MM | 13MM | 15MM | 16MM | 18MM | 19MM | 22MM | 24MM | 26MM | 29MM | 31MM |
| Size | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | M72 | M76 |
| Pitch | 4.5 | 4.5 | 5.0 | 5.0 | 5.5 | 5.5 | 6.0 | 6.0 | 6.0 | 6.0 |
| A/F | 65MM | 70MM | 75MM | 80MM | 85MM | 90MM | 95MM | 100MM | 105MM | 110MM |
| Height | 34MM | 36MM | 38MM | 42MM | 45MM | 48MM | 51MM | 54MM | 58MM | 61MM |
