U-Nut (DIN980M)
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:

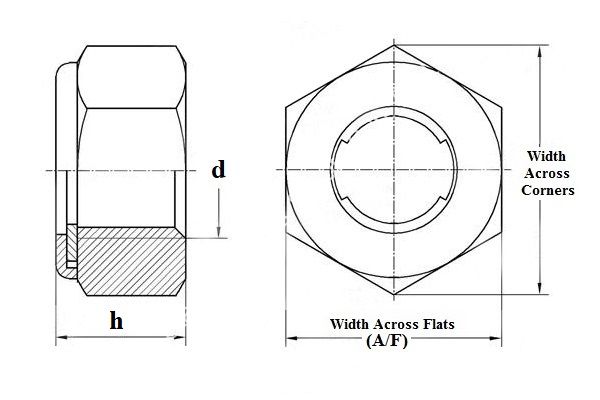

Catalog U-Nut (DIN980M)
| Size | M4 | M5 | M6 | M8 | M10 |
| Pitch | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 |
| A/F | 7MM | 8MM | 10MM | 13MM | 17MM |
| Height (h) | 3.8MM | 4.6MM | 5.3MM | 7.3MM | 8.3MM |
| Size | M12 | M14 | M16 | M20 | M24 |
| Pitch | 1.75 | 2.0 | 2.0 | 2.5 | 3.0 |
| A/F | 19MM | 22MM | 24MM | 30MM | 36MM |
| Height (h) | 10.5MM | 12.6MM | 14.5MM | 17.5MM | 21.6MM |
