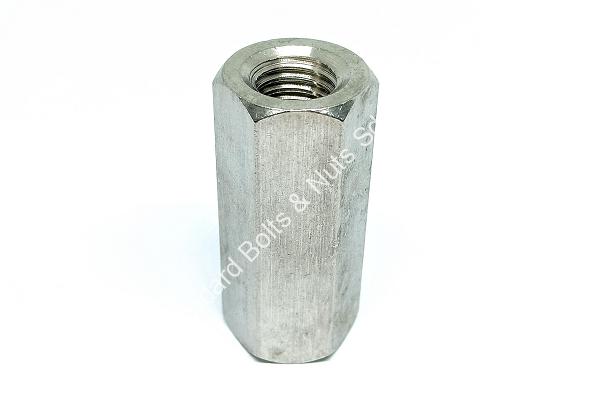

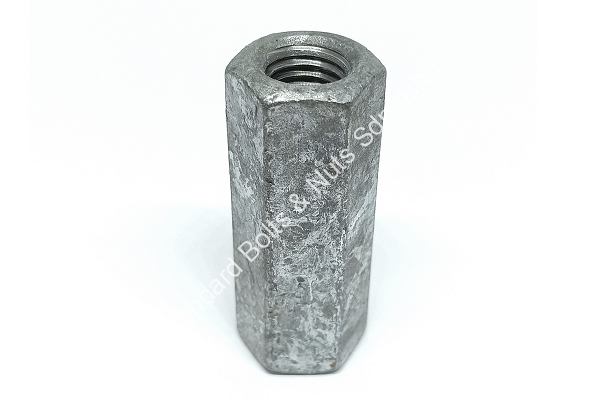

Hexagon Long Nut

Also known as Hexagon Coupling Nut

Material:
Steel , Stainless Steel 304 (A2)

Finishing
Steel comes in Zinc Plated  finishing

Metric Size
Size M6 M8 x 1.25 M10 M12 M12 M16 M20 M22 M24
Pitch 1.0 1.25 1.5 1.75 1.75 2.0 2.5 2.5 3.0
A/F 10MM 13MM 17MM 17MM 19MM 24MM 30MM 32MM 36MM
Length
  • 18MM
  • 20MM
  • 30MM
  • 30MM
  • 40MM
  • 50MM
  • 30MM
  • 45MM
  • 50MM
  • 40MM
  • 50MM
  • 45MM
  • 48MM
  • 60MM
  • 50MM
  • 50MM
  • 60MM

Inches Size
Size 1/4 5/16 3/8 1/2 1/2 5/8 3/4 7/8 1"
T.P.I 20 UNC 18 UNC 16 UNC 12 BSW 13 UNC 11 UNC 10 UNC 9 UNC 8 UNC
A/F 10MM 12.7MM 12.7MM 17MM / 19MM 17MM 21MM 26MM 32MM 35MM
Length
  • 30MM
  • 38MM
  • 45MM
  • 50MM
  • 29MM
  • 45MM
  • 50MM
  • 45MM
  • 50MM
  • 40MM
  • 54MM
  • 60MM
  • 54MM
  • 60MM
  • 50M
  • 60MM
  • 70MM
