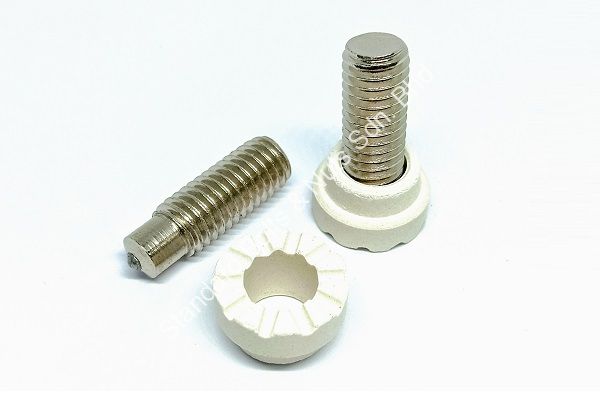

Arc Stud

Material :
Mild Steel , Stainless Steel 304 (A2)

Finishing :
Mild Steel comes in Plain and Nickel Plated Finishing

Read More:
Catalog ARC Stud



Thread Size (D1) M6 M8 M10 M12
D2 4.7MM 6.2MM 7.9MM 9.5MM
D3 7.0MM 9.0MM 11.0MM 13.0MM
M 4.0MM 4.5MM 5.0MM 6.5MM
H 2.0MM 2.5MM 3.0MM 4.0MM
Length (L) For Nickel ·          16MM ·          20MM ·          25MM ·          35MM ·          16MM ·          20MM ·          25MM ·          30MM ·          35MM ·          40MM ·          16MM ·          20MM ·          25MM ·          30MM ·          35MM ·          40MM -
Length (L) For Stainless Steel 304 (A2) ·          20MM ·          25MM ·          35MM ·          20MM ·          25MM ·          30MM ·          35MM ·          40MM ·          45MM ·          50MM ·          60MM ·          20MM ·          25MM ·          30MM ·          35MM ·          40MM ·          45MM ·          55MM ·          60MM ·          65MM ·          20MM ·          25MM ·          30MM ·          35MM ·          40MM ·          45MM ·          50MM ·          60MM ·          65MM
