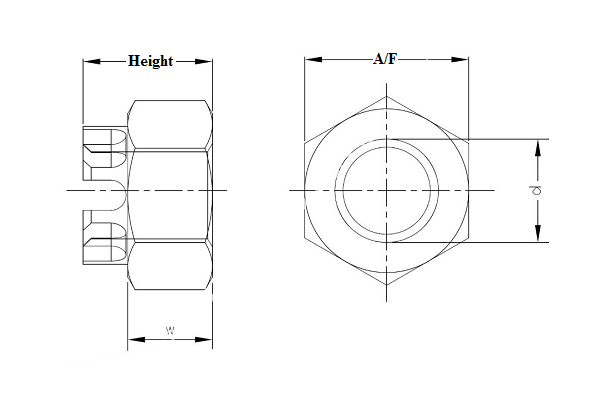

Castle Nut (DIN935)
Material:
Steel , Stainless Steel 304 (A2)
Finishing:
Steel comes in Black Oxide and Zinc Plated finishing
Read More:
Catalog Castle Nut (DIN935)
| Size | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
| Pitch | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 |
| A/F | 7MM | 8MM | 10MM | 13MM | 17MM | 19MM | 22MM | 24MM |
| Height | 5MM | 6MM | 7.5MM | 9.5MM | 12MM | 15MM | 16MM | 19MM |
| Size | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 |
| Pitch | 2.5 | 2.5 | 2.5 | 3.0 | 2.5 | 2.5 | 3.0 | 3.0 |
| A/F | 27MM | 30MM | 32MM | 36MM | 41MM | 46MM | 50MM | 55MM |
| Height | 21MM | 22MM | 26MM | 27MM | 30MM | 33MM | 35MM | 38MM |
