Conical Washer For Cap
Material:
Spring Steel
Finishing:
Steel comes in Plain
Note:
Drop us an email if you have other coating or size requirement
Read More:
Catalog Conical Washer For Cap

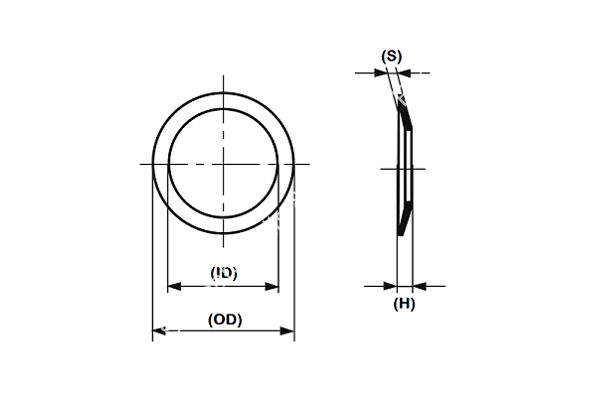

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| Diameter (ID) | 3.2MM | 4.3MM | 5.3MM | 6.4MM | 8.4MM | 10.5MM | 13MM | 17MM | 21MM |
| Diameter (OD) | 5.7MM | 7.2MM | 9.2MM | 10.2MM | 14MM | 17MM | 21MM | 26MM | 32MM |
| Thickness (S) | 0.3MM | 0.4MM | 0.45MM | 0.45MM | 0.55MM | 0.7MM | 0.9MM | 1.0MM | 1.2MM |
| Height (H) (min.) | 0.45MM | 0.55MM | 0.65MM | 0.7MM | 0.9MM | 1.1MM | 1.35MM | 1.65MM | 2.0MM |
