Countersunk Machine Screw
Material:
Steel, Stainless Steel 304 (A2), Stainless Steel 316 (A4)
Finishing:

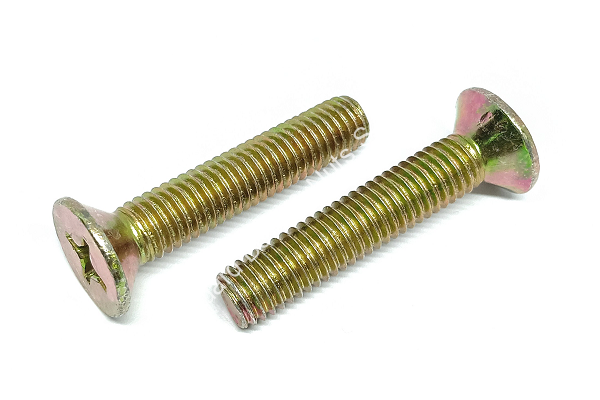

Steel comes in Yellow Zinc and Zinc Plated finishing
Note:
Drop us an email if you have other coating or size requirement
Read More:
Catalog Countersunk Machine Screw

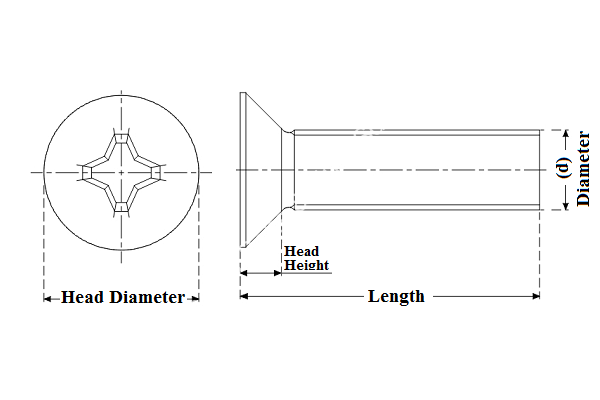

| Countersunk Machine Screw | |||||||||
| Diameter Size | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 |
| Head Diameter (Max) | 3.8MM | 4.7MM | 5.6MM | 6.5MM | 7.5MM | 9.2MM | 11.0MM | 14.5MM | 18.0MM |
| Head Height (Max) | 1.2MM | 1.5MM | 1.65MM | 1.93MM | 2.2MM | 2.5MM | 3.0MM | 4.0MM | 5.0MM |
| Length | 4MM - 25MM | 4MM - 25MM | 5MM - 100MM | 6MM - 50MM | 5MM - 150MM | 8MM - 150MM | 10MM - 150MM | 12MM - 100MM | 16MM - 50MM |
