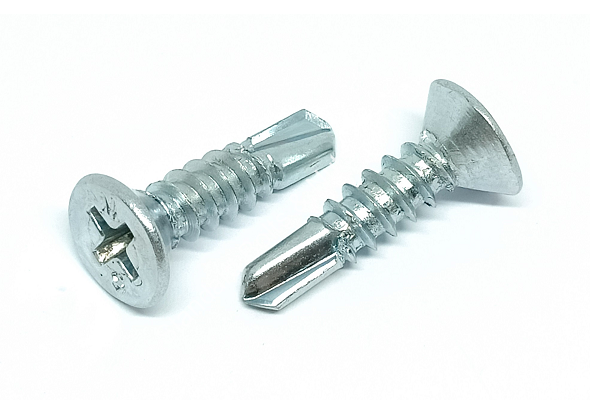

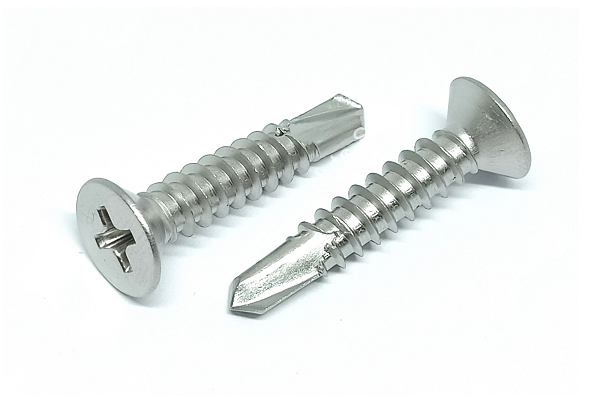

Countersunk Self Drilling Screw

Material:
Steel , Stainless Steel 305 , Stainless Steel 316 , Stainless Steel 410

Finishing:
Steel comes in Zinc Plated finishing

Note:
Drop us an email if you have other coating or size requirement

Read More:
Catalog Countersunk Self Drilling Screw

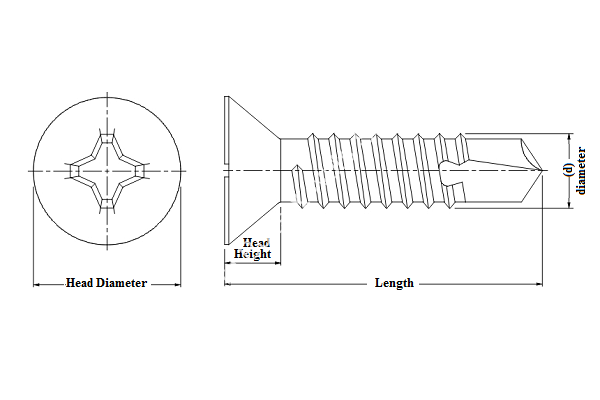

Diameter Size (d) #6 (M3.5) #8 (M4.2) #10 (M4.8) #12 (M5.5) #14 (M6.3)
Head Diameter 6.8MM 8.1MM 9.5MM 10.8MM 12.4MM
Head Height 2.1MM 2.5MM 3.0MM 3.4MM 3.8MM
Length
  • 3/8
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/2
  • 7/8
  • 1-1/2
  • 2"
  • 2-1/2
