DIN933 Hexagon Bolt Full Thread (MM)
Material:
CL 8.8, CL 10.9, Stainless Steel 304 (A2), Stainless Steel 316 (A4), Brass and Nylon
Finishing
CL 8.8 comes in Black Oxide , Zinc Plated , Yellow Zinc and and Hot Dip Galvanized (HDG) finishing
CL 10.9 comes in Black Oxide finishing
Note:
Drop us a note if you have other coating or size requirement
Read More:
Catalog DIN933 Hexagon Bolts (MM SIZE)

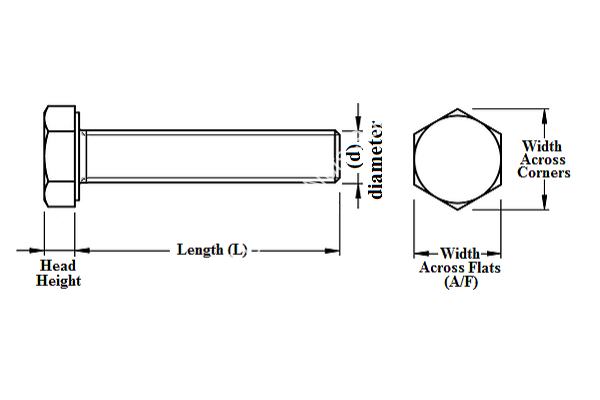

| Size | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 |
| Pitch | 0.7 | 0.8 | 1.0 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 |
| Width Across Flats (A/F) | 7MM | 8MM | 10MM | 11MM | 13MM | 17MM | 19MM | 22MM | 24MM | 27MM | 30MM |
| Width Across Corners | 7.66MM | 8.79MM | 11.05MM | 12.12MM | 14.38MM | 17.77MM | 20.03MM | 24.49MM | 26.75MM | 30.14MM | 33.53MM |
| Head Height | 2.8MM | 3.5MM | 4MM | 5.3MM | 6.4MM | 7.5MM | 8.8MM | 10MM | 11.5MM | 12.5MM | |
| Length | 8MM - 60MM | 8MM - 75MM | 10MM - 150MM | 12MM - 75MM | 12MM - 200MM | 12MM - 200MM | 16MM - 200MM | 20MM - 200MM | 25MM 200MM | 30MM - 200MM | 30MM - 200MM |
| Size | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 |
| Pitch | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | 4.5 | 4.5 | 5.0 |
| width Across Flats (A/F) | 32MM | 36MM | 41MM | 46MM | 50MM | 55MM | 60MM | 65MM | 70MM | 75MM |
| Width Across Corners | 37.72MM | 39.98MM | 45.2MM | 50.85MM | 55.37MM | 60.79MM | 66.44MM | 71.3MM | 76.95MM | 82.6MM |
| Head Height | 14MM | 15MM | 17MM | 18.7MM | 21MM | 22.5MM | 25MM | 26MM | 28MM | 30MM |
| Length | 40MM - 200MM | 45MM - 200MM | 50MM - 200MM | 60MM - 200MM | 70MM - 200MM | 70MM - 250MM | 100MM - 200MM | 100MM - 200MM | 100MM - 200MM | 100MM - 200MM |
