Hexagon Flange Nut
Material:

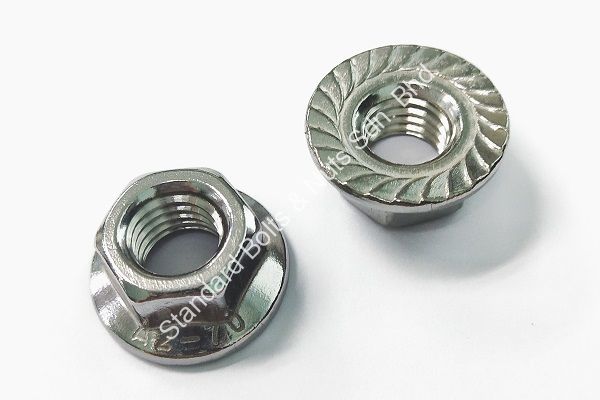

Steel , Stainless Steel 304 (A2) and Stainless Steel 316 (A4)
Finishing

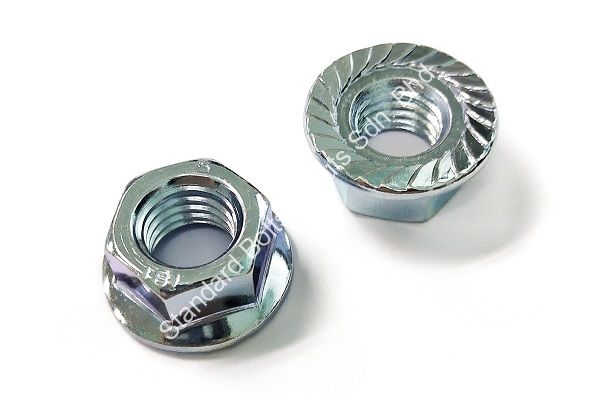

Steel comes in Yellow Zinc and Zinc Plated finishing
Diameter Size:
M3 , M4 , M5 , M6 , M8 , M10 , M12 and M16
Read More:
Catalog Hexagon Flange Nut

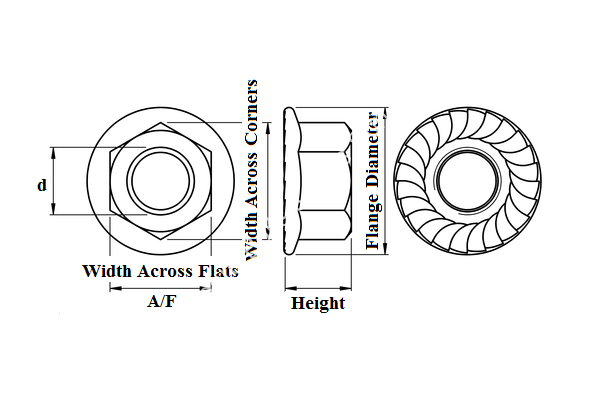

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| Pitch | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 |
| A/F | 5.5MM | 7MM | 8MM | 10MM | 13MM | 15MM | 18MM | 24MM | 30MM |
| Height | 4MM | 4.65MM | 5MM | 6MM | 8MM | 10MM | 12MM | 16MM | 20MM |
