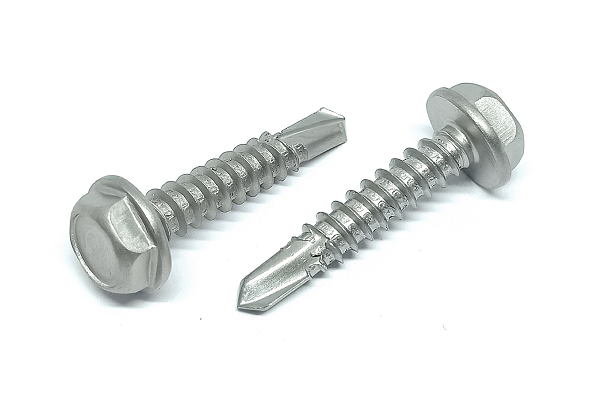

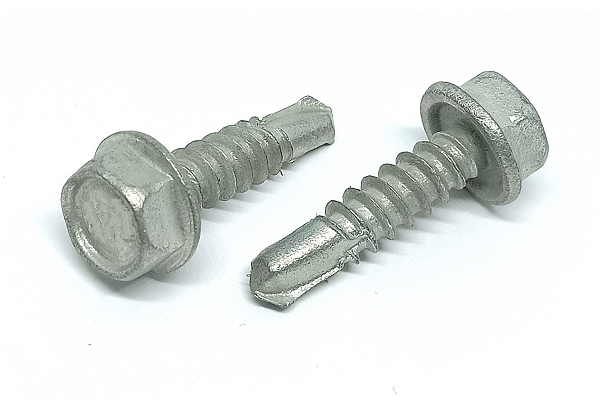

Hexagon Head Self Drilling Screw HO

Material:
Steel , Stainless Steel 305 , Stainless Steel 316 , Stainless Steel 410

Finishing:

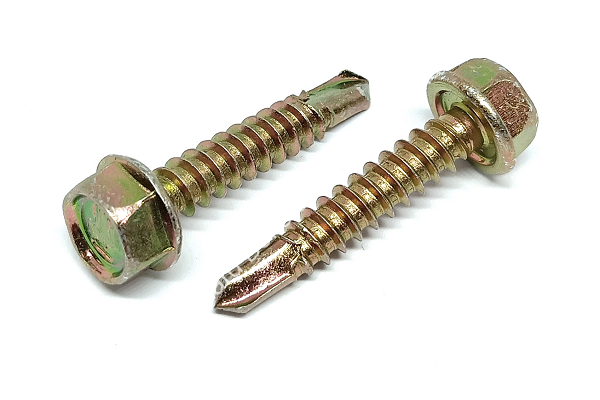

Steel comes in Yellow Zinc and Zinc Plated finishing

Note:
Drop us an email if you have other coating or requirement

Read More:
Catalog Hexagon Head Self Drilling Screw HO

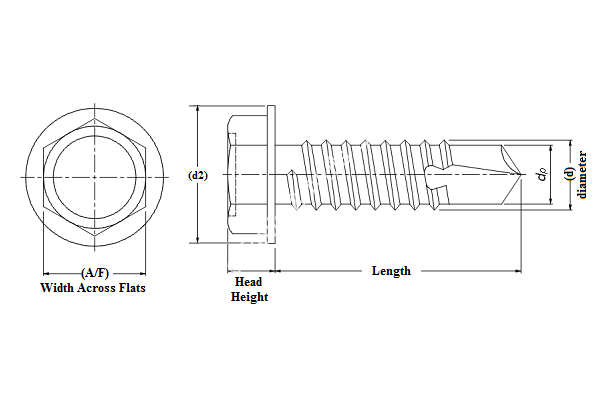

Diameter Size (d) #10 (M4.8) #12 (M5.5) #14 (M6.3)
A/F 8MM 8MM 10MM
Flange Diameter (d2) (max) 10.5MM 11.0MM 13.5MM
Head Height  (max) 4.45MM 5.45MM 6.45MM
Length
  • 1/2
  • 5/8
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 1-3/4
  • 2"
  • 2-1/4
  • 2-1/2
  • 3"
  • 3-1/2
  • 4"
  • 3/4
  • 1"
  • 1-1/4
  • 1-1/2
  • 2"
