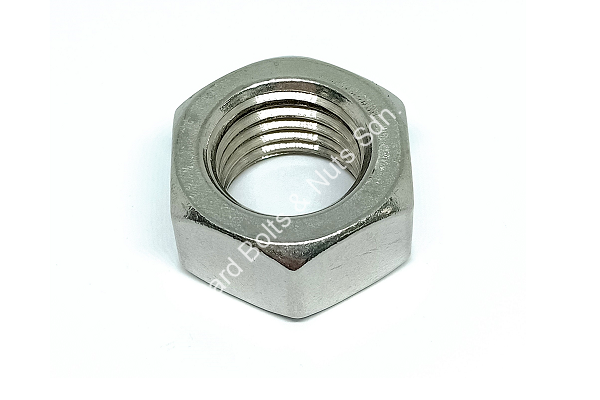

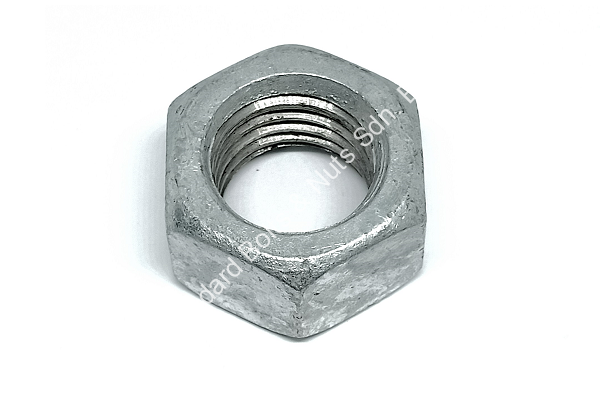

Hexagon Nut (UNF)
Material:
Steel (Grade 5), Stainless Steel 304 (A2)
Finishing:
Grade 5 comes in Black Oxide and Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Hexagon Nut (UNF)
| Size | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 |
| T.P.I | 28G | 24G | 24G | 20G | 20G | 18G | 18G |
| A/F | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 13/16 | 15/16 |
| Height | 5.8MM | 7.0MM | 8.6MM | 9.8MM | 11.4MM | 12.6MM | 14.2MM |
| Size | 3/4 | 7/8 | 1" | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 |
| T.P.I | 16G | 14G | 12G | 12G | 12G | 12G | 12G |
| A/F | 1-1/8 | 1-5/16 | 1-1/2 | 1-11/16 | 1-7/8 | 2-1/16 | 2-1/4 |
| Height | 16.9MM | 19.7MM | 22.5MM | 25.4MM | 27.8MM | 30.7MM | 33.5MM |
