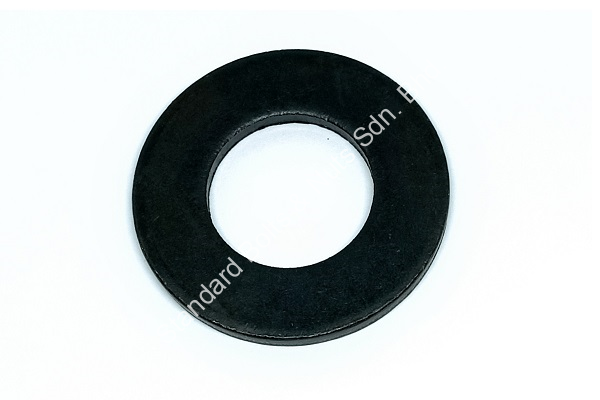

High Tensile Flat Washer (DIN125)
Material :
High Tensile Grade 8.8
Finishing :
High Tensile Grade 8.8 comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog High Tensile Flat Washer (DIN125)
| Diameter Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
| d1 | 8.4MM | 10.5MM | 13MM | 15MM | 17MM | 19MM | 21MM | 23MM | 25MM |
| d2 | 16MM | 20MM | 24MM | 28MM | 30MM | 34MM | 37MM | 39MM | 44MM |
| Thickness (t) | 1.6MM | 2.0MM | 2.5MM | 2.5MM | 3.0MM | 3.0MM | 3.0MM | 3.0MM | 4.0MM |
| Diameter Size | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 |
| d1 | 28MM | 31MM | 34MM | 37MM | 40MM | 43MM | 46MM | 50MM |
| d2 | 50MM | 56MM | 60MM | 66MM | 72MM | 78MM | 85MM | 92MM |
| Thickness (t) | 4.0MM | 4.0MM | 5.0MM | 5.0MM | 6.0MM | 7.0MM | 7.0MM | 7.0MM |
