Quick Lock Washer

Material :
Spring Steel

Diameter Size:
M4, M5, M6, M8 and M10

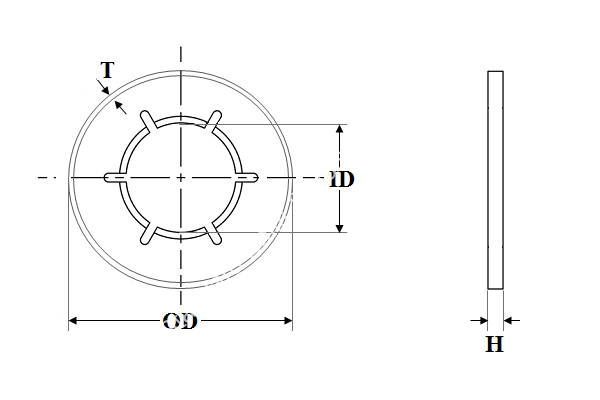

Size M4 M5 M6 M8 M10
ID 3.5MM 5.5MM 7.5MM 9.5MM
OD 11.0MM 15.2MM 15.1MM 18.1MM
Thickness (T) 0.23MM 0.35MM 0.35MM 0.35MM
Height (H) 1.27MM 1.7MM 1.7MM 2.1MM
