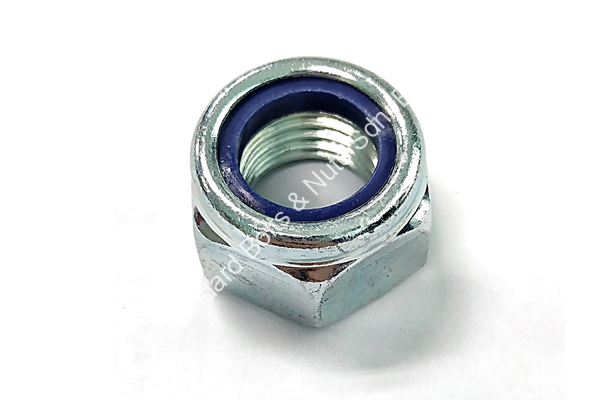

Lock Nut (Nylon Insert, DIN985, Fine Thread)
Material:
Steel
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Lock Nut (Nylon Insert, DIN985, Fine Thread)
| Size | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 |
| Pitch | 0.7 | 1.0 |
|
|
1.5 | 1.5 |
|
|
|
|
|
2.0 | 2.0 | 3.0 | 3.0 | 3.0 |
| A/F | 10MM | 13MM | 17MM | 19MM | 22MM | 24MM | 27MM | 30MM | 32MM | 36MM | 41MM | 46MM | 50MM | 55MM | 60MM | 65MM |
| h (Max) | 6MM | 8MM | 10MM | 12MM | 14MM | 16MM | 18.5MM | 20MM | 22MM | 24MM | 27MM | 30MM | 33MM | 36MM | 39MM | 42MM |
| m | 4MM | 5.5MM | 6.5MM | 8MM | 9.5MM | 10.5MM | 13MM | 14MM | 15MM | 15MM | 17MM | 19MM | 22MM | 25MM | 27MM | 29MM |
