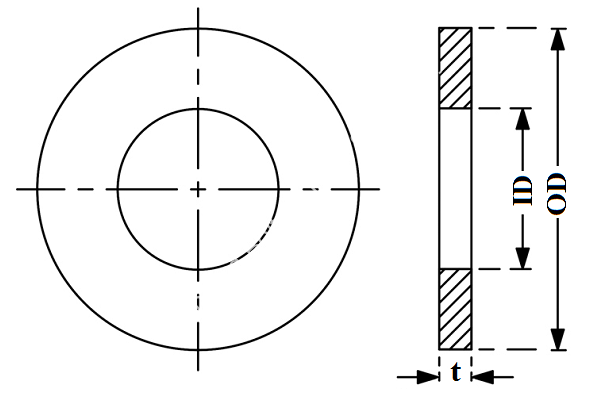

| SIZE | M2 | M2.5 | M3 | M4 | M5 | M5 | M6 |
| ID | 2.2MM | 2.7MM | 3.2MM | 4.3MM | 5.3MM | 5.3MM | 6.4MM |
| OD | 5MM | 6MM | 7MM | 9MM | 10MM | 12MM | 12MM |
| THICKNESS (T) | 0.3MM | 0.5MM | 0.5MM | 0.8MM | 1.0MM | 1.0MM | 1.6MM |
| SIZE | M8 | M10 | M12 | M16 | M20 | M24 | |
| ID | 8.4MM | 10.5MM | 13.0MM | 17.0MM | 21.0MM | 25.0MM | |
| OD | 16MM | 20MM | 24MM | 30MM | 37MM | 44MM | |
| THICKNESS (T) | 1.6MM | 2.0MM | 2.5MM | 3.0MM | 3.0MM | 4.0MM |
