High Tensile Flat Washer (F436)
Material :
High Tensile Grade 8.8
Finishing :

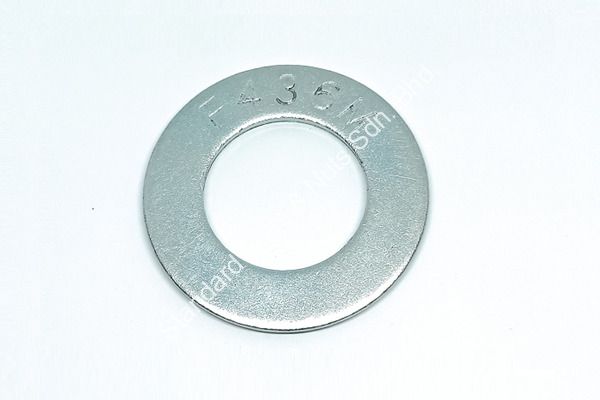

High Tensile Grade 8.8 comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog High Tensile Flat Washer (F436)

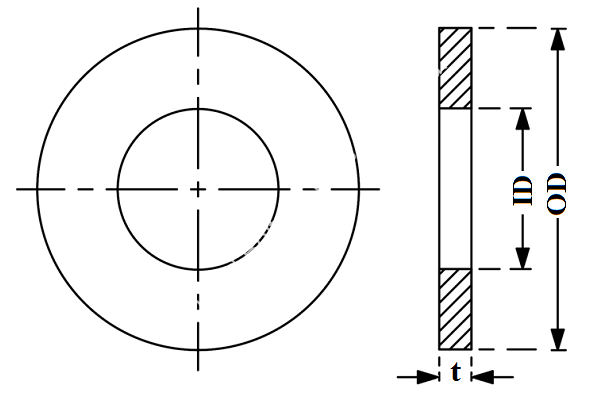

| Size | M8 | M10 | M12 | M16 | M20 | M22 | M24 |
| Diameter (ID) | 8.5MM | 10.5MM | 14MM | 18MM | 22MM | 24MM | 26MM |
| Diameter (OD) | 17MM | 20MM | 27MM | 33MM | 37MM | 44MM | 50MM |
| Thickness (t) | 1.6MM | 1.6MM | 2.5MM | 3.0MM | 3.5MM | 4.0MM | 4.0MM |
| Size | M27 | M30 | M33 | M36 | M39 | M42 | |
| Diameter (ID) | 30MM | 33MM | 36MM | 39MM | 42MM | 45MM | |
| Diameter (OD) | 57MM | 60MM | 60MM | 72MM | 78MM | 84MM | |
| Thickness (t) | 4.0MM | 4.0MM | 4.0MM | 4.0MM | 4.0MM | 7.0MM |
