Disc Spring Washer

Material :
Steel

Finishing :
Steel comes in Black Oxide Finishing

Note:
Drop us an email if you have other coating requirement

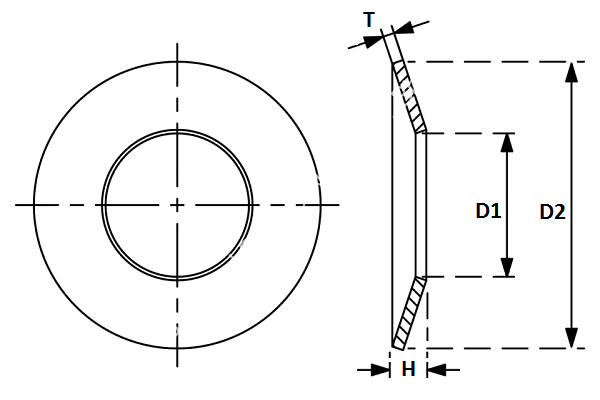

Disc Spring Washer (DIN2093)
Size M4 M5 M6 M6 M8 M10 M10 M12 M14 M16 M16
Diameter (d2) 8MM 10MM 12.5MM 12.5MM 16MM 20MM 20MM 25MM 28MM 31.5MM 31.5MM
Thickness (s) 0.4MM 0.5MM 0.5MM 0.6MM 0.9MM 0.8MM 2.0MM 1.5MM 1.5MM 1.2MM 1.75MM

Size M18 M20 M22 M24 M28 M30 M30 M36 M40 M45 M50
Diameter (d2) 35MM 40MM 45MM 50MM 56MM 63MM 63MM 71MM 80MM 91MM 100MM
Thickness (s) 2.0MM 2.0MM 2.5MM 3.0MM 3.0MM 2.5MM 3.5MM 4.0MM 5.0MM 5.0MM 6.0MM
