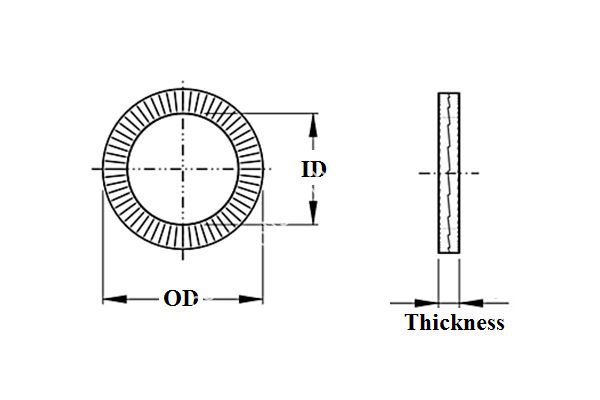

Wedge Lock Washer
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Read More:
Catalog Wedge Lock Washer
| Wedge Lock Washer (Small OD) | ||||||||||
| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 |
| Diameter (ID) | 3.4MM | 4.4MM | 5.4MM | 6.5MM | 8.6MM | 10.7MM | 13.0MM | 15.2MM | 17.0MM | 19.5MM |
| Diameter (OD) | 7.0MM | 7.6MM | 9.0MM | 10.8MM | 13.5MM | 16.6MM | 19.5MM | 23.0MM | 25.4MM | 29.0MM |
| Size | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | |
| Diameter (ID) | 21.4MM | 23.4MM | 25.3MM | 28.4MM | 31.4MM | 34.4MM | 37.4MM | 40.4MM | 43.2MM | |
| Diameter (OD) | 30.7MM | 34.5MM | 39.0MM | 42.0MM | 47.0MM | 48.5MM | 55.0MM | 58.5MM | 63.0MM | |
| Wedge Lock Washer (Large OD) | ||||||||||
| Size | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 |
| Diameter (ID) | 4.4MM | 5.4MM | 6.5MM | 8.6MM | 10.7MM | 13.0MM | 15.2MM | 17.0MM | 19.5MM | 21.4MM |
| Diameter (OD) | 9.0MM | 10.8MM | 13.5MM | 16.6MM | 21.0MM | 25.4MM | 30.7MM | 30.7MM | 34.5MM | 39.0MM |
| Size | M22 | M24 | M27 | M30 | M33 | M36 | ||||
| Diameter (ID) | 23.4MM | 25.3MM | 28.4MM | 31.4MM | 34.4MM | 37.4MM | ||||
| Diameter (OD) | 42.0MM | 48.5MM | 48.5MM | 58.5MM | 58.5MM | 63.0MM | ||||
