Wave Washer
Material :
Steel
Finishing :
Steel comes in Black Oxide Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Wave Washer

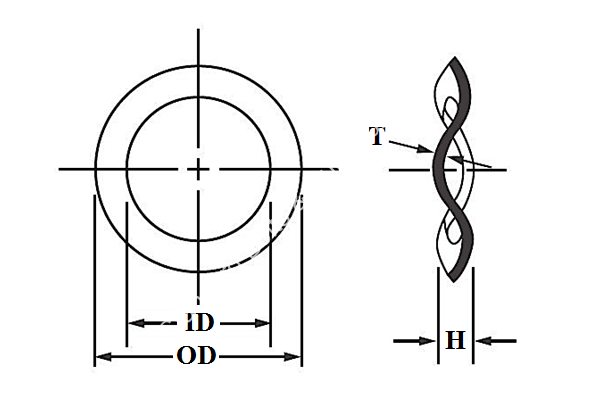

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M15 | M16 | M17 | M18 | M20 |
| Diameter (OD) | 6.5MM | 8.0MM | 9.0MM | 11.0MM | 12.5MM | 14.0MM | 17.0MM | 20.0MM | 21.6MM | 22.5MM | 23.2MM | 26.0MM | 29.1MM |
| Thickness (T) | 0.2MM | 0.2MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM | 0.3MM |
