R-Pin
Material:
Steel
Finishing:
Steel comes in Zinc Plated finishing
Note:
Drop us an email if you have other coating or size requirement
Read More:

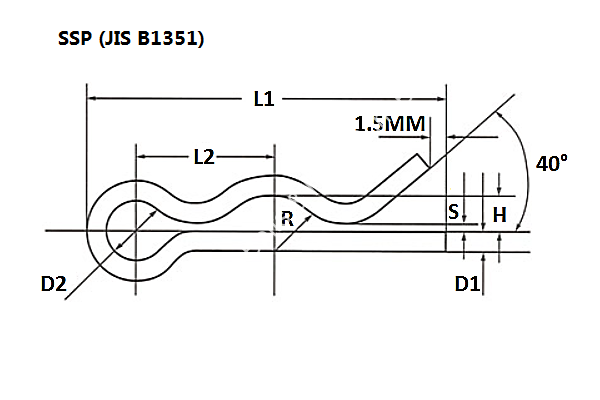

Catalog R-Pin (JIS B1351)
| SSP (JIS B1351) | ||||||||
| Size | SSP 4 | SSP 5 | SSP 6 | SSP 8 | SSP 10 | SSP 12 | SSP 14 | SSP 16 |
| D1 | 1.0MM | 1.0MM | 1.2MM | 1.6MM | 1.8MM | 1.8MM | 2.0MM | 2.0MM |
| D2 | 3.0MM | 3.0MM | 3.6MM | 4.8MM | 5.4MM | 5.4MM | 6.0MM | 6.0MM |
| L1 | 16.3MM | 17.9MM | 21.2MM | 27.7MM | 32.6MM | 35.8MM | 40.6MM | 43.8MM |
| L2 | 6.0MM | 6.5MM | 7.8MM | 10.4MM | 12.2MM | 13.2MM | 15.0MM | 16.0MM |
| R | 2.0MM | 2.5MM | 3.0MM | 4.0MM | 5.0MM | 6.0MM | 7.0MM | 8.0MM |
| H | 1.0MM | 1.5MM | 1.8MM | 2.4MM | 3.2MM | 4.2MM | 5.0MM | 6.0MM |
| S | 0.5MM | 0.5MM | 0.6MM | 0.8MM | 0.9MM | 0.9MM | 1.0MM | 1.0MM |

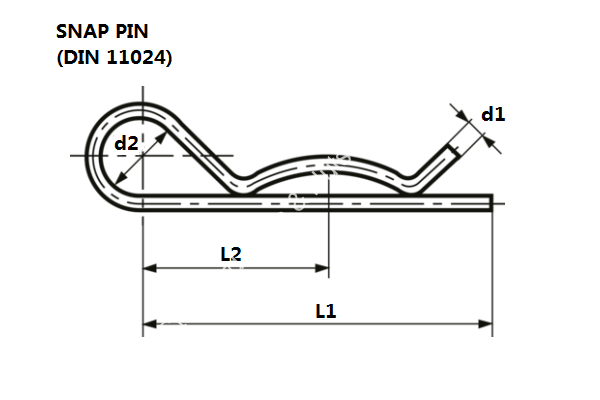

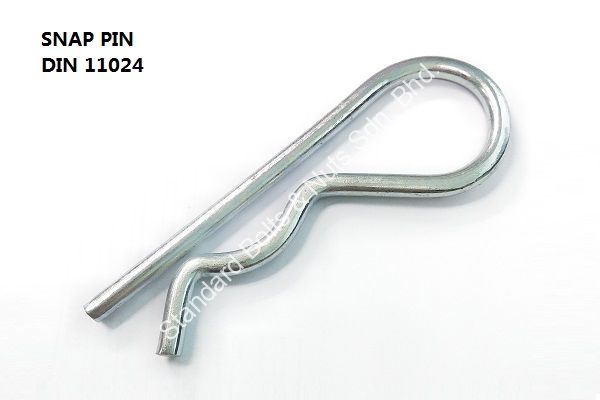

| SNAP PIN DIN 11024 | ||||||||
| Diameter d1 | M2 | M3 | M4 | M5 | M6 | |||
| d2 | 10MM | 18MM | 20MM | 24MM | 30MM | |||
| Length (L1) | 50MM | 60MM | 60MM | 85MM | 105MM | |||
| L2 | 25MM | 28MM | 30MM | 40MM | 50MM | |||
| For Shaft | 9MM ~ 14MM | 10MM ~ 16MM | 16MM ~ 20MM | 20MM ~ 28MM | 28MM ~ 40MM | |||
| Borehole Dia. | 2.5MM | 3.5MM | 4.5MM | 6MM | 7MM | |||
