Socket Head Cap Screw (Low Head Type)

Material :
Steel

Property Class:
Grade 8.8

Finishing :
Steel comes in Black Oxide Finishing

Note:
Drop us an email if you have other coating requirement

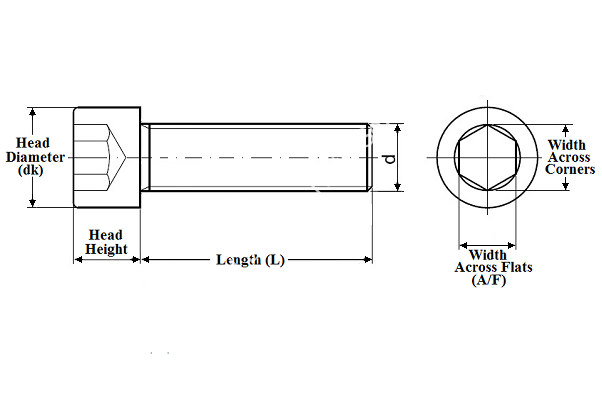

Socket Head Cap Screw (Low Head Type, DIN7984)
Diameter Size M3 M4 M5 M6 M8 M10 M12 M16 M20
Pitch 0.5 0.7 0.8 1.0 1.25 1.5 1.75 2.0 2.5
A/F 2MM 2.5MM 3MM 4MM 5MM 7MM 8MM 12MM 14MM
Head Diameter 5.5MM 7MM 8.5MM 10MM 13MM 16MM 18MM 24MM 30MM
Head Height 2MM 2.8MM 3.5MM 4MM 5MM 6MM 7MM 9MM 11MM
Length
  • 5MM
  • 6MM
  • 8MM
  • 10MM
  • 12MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 6MM
  • 8MM
  • 10MM
  • 12MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 6MM
  • 8MM
  • 10MM
  • 12MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 8MM
  • 10MM
  • 12MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 45MM
  • 50MM
  • 10MM
  • 12MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 45MM
  • 50MM
  • 55MM
  • 16MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 45MM
  • 50MM
  • 55MM
  • 60MM
  • 20MM
  • 25MM
  • 30MM
  • 35MM
  • 40MM
  • 45MM
  • 50MM
  • 55MM
  • 60MM
