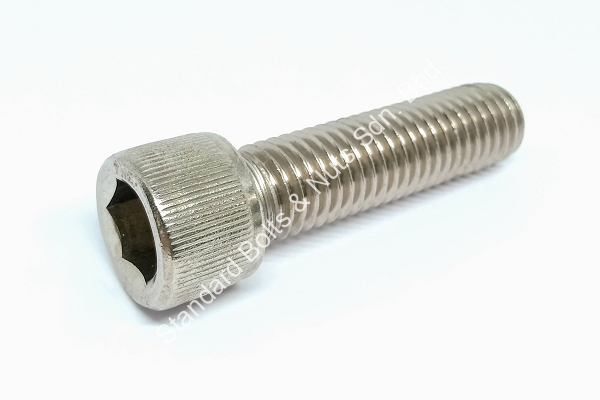

Socket Head Cap Screw (UNF)
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Socket Head Cap Screw (UNF)
| Diameter Size | #10-32 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 |
| T.P.I | 32G | 28G | 24G | 24G | 20G | 20G | 18G | 16G |
| A/F | 5/32 | 3/16 | 7/32 | 5/16 | 5/16 | 3/8 | 1/2 | 9/16 |
| Head Diameter | 7.9MM | 9.5MM | 11.9MM | 14.2MM | 16.5MM | 19.0MM | 23.8MM | 28.5MM |
| Head Height | 4.8MM | 6.4MM | 7.9MM | 9.5MM | 11.1MM | 12.7MM | 15.9MM | 19.0MM |
| Length | 3/8 - 2" | 3/8 - 4" | 1/2 - 4" | 1/2 - 5" | 3/4 - 4" | 1" - 6" | 1" - 5" | 1-1/2 - 6" |
