Socket Set Screw with Dog point (DIN915)
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Black Oxide Finishing
Note:
Drop us an email if you have other coating requirement
Read More:

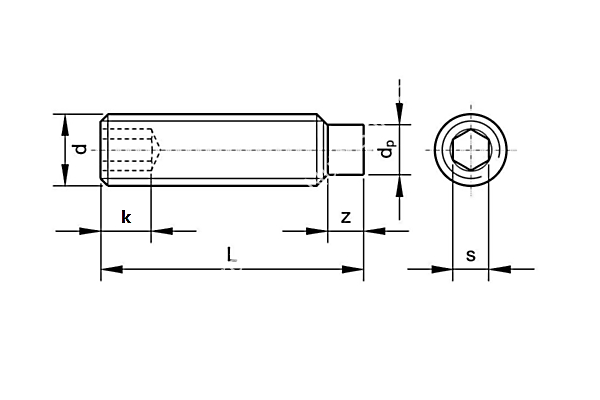

Catalog Socket Set Screw with Dog point (DIN915)
| Diameter (d) | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M24 |
| Pitch | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 |
| kmax | 1.7MM | 2MM | 2MM | 2.5MM | 3MM | 3.5MM | 5MM | 6MM | 8MM | 9MM | 10MM | 11MM | 12MM | 15MM |
| s | 0.9MM | 1.3MM | 1.5MM | 2MM | 2.5MM | 3MM | 4MM | 5MM | 6MM | 6MM | 8MM | 10MM | 10MM | 12MM |
| dpmax | 1MM | 1.5MM | 2MM | 2.5MM | 3.5MM | 4MM | 5.5MM | 7MM | 8.5MM | 10MM | 12MM | 13MM | 15MM | 18MM |
| Length (L) | 4MM - 10MM | 3MM - 10MM | 3MM - 12MM | 4MM - 16MM | 5MM - 20MM | 6MM - 30MM | 8MM - 40MM | 10MM - 50MM | 12MM - 50MM | 14MM - 60MM | 16MM - 60MM | 20MM - 50MM | 20MM - 60MM | - |
